K Series Lithium Battery Cylinder

IP65 | Long Lifetime | Compact Design
Model
K Series
E Series
Battery Capacity
25.6V 90AH
25.6V 60AH
Battery Cell
32140/32700
●
Lifetime@D.OD 50%
6000 cycles
●
Warranty
5 Years
●
Send inquiry
More info
lithium battery cylinder
lithium iron battery box
inpole lithium battery
pole mounted lithium battery
solar street light battery
solar lithium battery
lithium battery cylinder
lithium iron battery box
inpole lithium battery
pole mounted lithium battery
solar street light battery
solar lithium battery

K Series Lithium Battery Cylinder

IP65 | Long Lifetime | Compact Design
Model
K Series
E Series
Battery Capacity
25.6V 90AH
25.6V 60AH
Battery Cell
32140/32700
●
Lifetime@D.OD 50%
6000 cycles
●
Warranty
5 Years
●
Send inquiry
More info

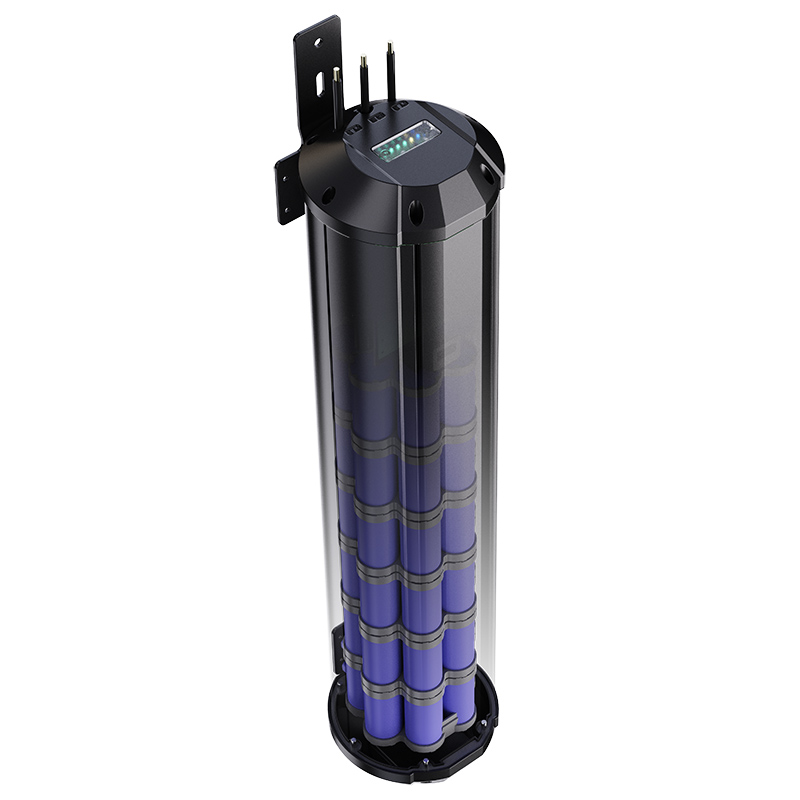

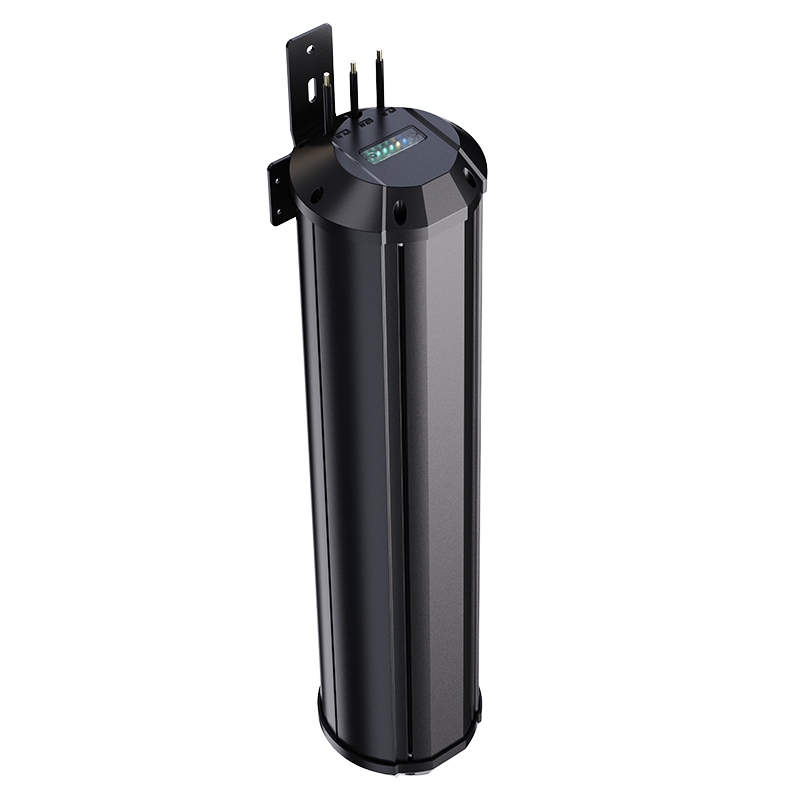

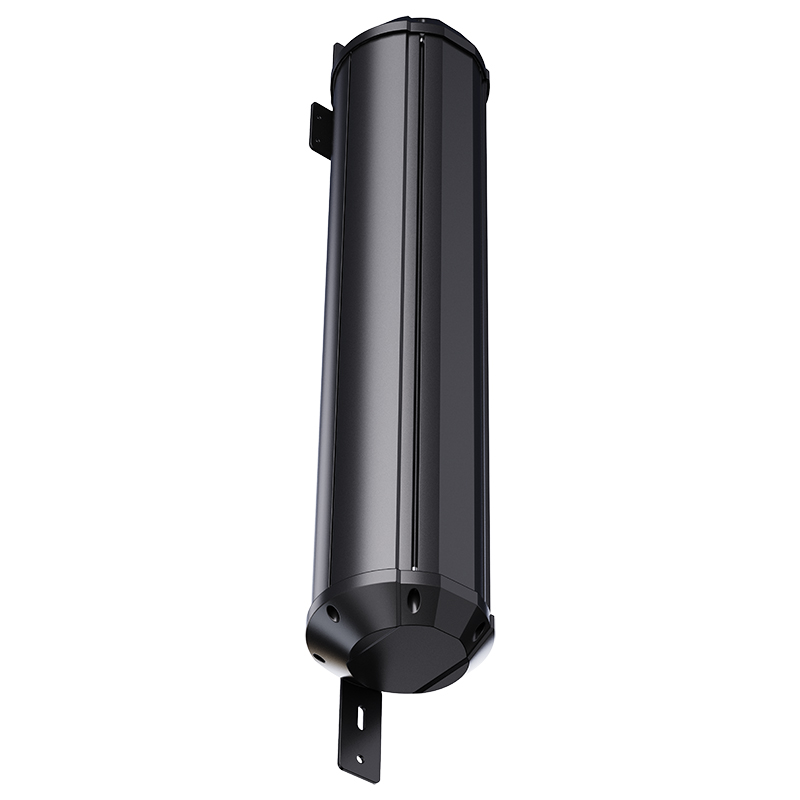

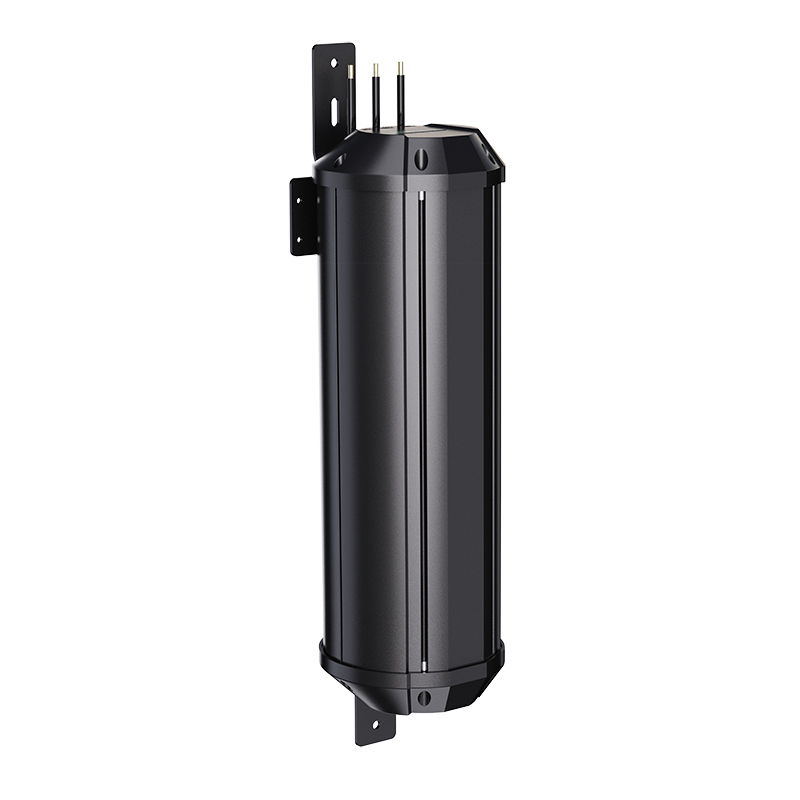

Introducing the EK Series Lithium Battery Pack – the ultimate power solution tailored for outdoor lighting and versatile applications. Designed to fit seamlessly within lamp poles, the EK Series redefines efficiency and durability, making it the perfect choice for solar streetlights, solar-powered surveillance systems, and solar advertising displays.

Crafted with a robust aluminum alloy casing and an IP67 waterproof rating, this battery pack is built to withstand the toughest environmental challenges. Its customizable capacity ensures it adapts to your unique energy needs, delivering unmatched performance. Whether powering outdoor systems or providing rapid indoor electricity supply, the EK Series guarantees reliability and flexibility. Elevate your projects with this state-of-the-art energy solution, engineered for excellence in every detail.

Key Componente & Advantages

High Charging Efficiency
A high-efficiency solar controller maximizes energy conversion, ensuring rapid and reliable battery charging.
Enhanced Safety

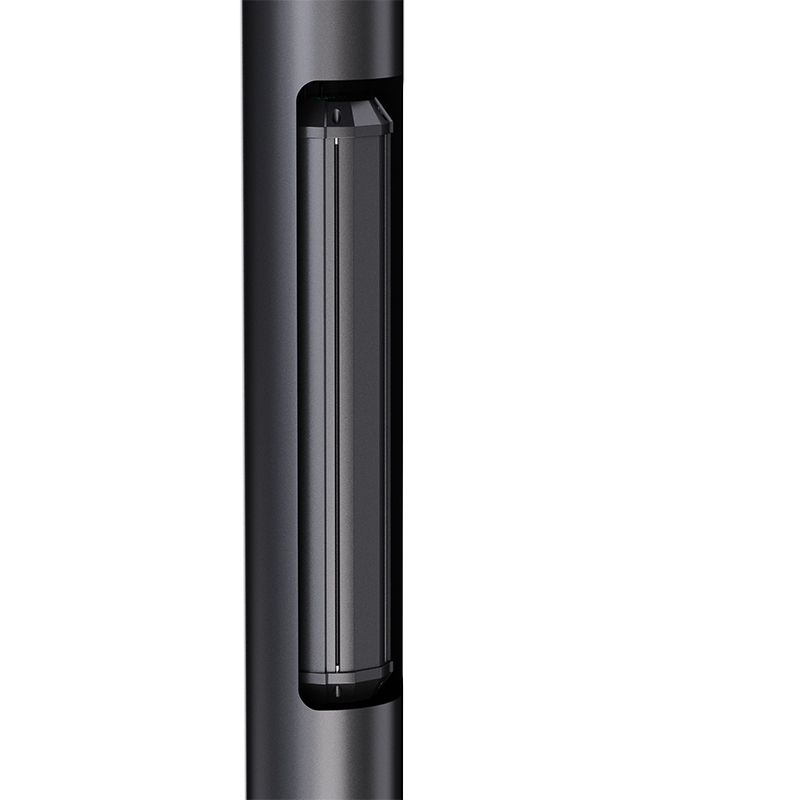

The design, integrated into the light pole, effectively protects the battery from external environmental impacts such as extreme weather, theft, and vandalism. This ensures the battery's safety and longevity
Simplified Installation & Maintenance:
The integrated battery design makes the system more unified, simplifying and speeding up the installation and maintenance processes, thus reducing labor and time costs.
Space Saving
Utilizing the internal space of the light pole for battery installation avoids the issue of traditional external battery boxes occupying ground space, keeping the installation area clean and neat.
Aesthetic Uniformity
Integrating the battery inside the light pole results in a cleaner, more stylish appearance for the entire solar street light system, aligning with the aesthetic standards of modern cities and high-end communities.
Efficient Heat Dissipation
The environment inside the pole offers excellent heat dissipation conditions, helping maintain the battery at an optimal working temperature extending battery life and enhancing the performance.

Main Specification

Model
K1260
K1290
K2460
K2490
Battery Cell
15A 3.2V 32140
●
●
●
Nominal Capacity
12.8V 60AH
12.8V 90AH
12.8V 90AH
25.6V 90AH
Battery Cell Qty
16 pieces
24 pieces
32pieces
40 pieces
Array Mode
4P4S
6P4S
8P4S
5P8S
Dimension ( L*Dia)
L340*D150mm
L620*D150mm
L620*D150mm
L1200*D150mm
Net Weight
5.50Kg
7.80Kg
10.30Kg
15.50Kg
Charge Mode
C.C + C.V
●
●
●
Chg Cut-off Vol
29.2±0.05V
●
●
●
Dischg Cut-off Volt
22±0.05V
●
●
●
Lifetime
4,000 cycles
●
●
●
Default D.O.D
60%
●
●
●
Storage Temp
5℃～35℃
●
●
●
Operating Temp
-10℃～45℃
●
●
●
Warranty
3 Years
●
●
●

Main Specification

Model
Battery Cell
Nominal Capacity
Battery Cell Qty
Array Mode
Dimension ( L*Dia)
Net Weight
Charge Mode
Chg Cut-off Vol
Dischg Cut-off Volt
Lifetime
Default D.O.D
Storage Temp
Operating Temp
Warranty
K1260
K1290
K2460
K2490
15A 3.2V 32140
●
●
●
12.8V 60AH
12.8V 90AH
12.8V 90AH
25.6V 90AH
16 pieces
24 pieces
32pieces
40 pieces
4P4S
6P4S
8P4S
5P8S
L340*D150mm
L620*D150mm
L620*D150mm
L1200*D150mm
5.50Kg
7.80Kg
10.30Kg
15.50Kg
C.C + C.V
●
●
●
29.2±0.05V
●
●
●
22±0.05V
●
●
●
4,000 cycles
●
●
●
60%
●
●
●
5℃～35℃
●
●
●
-10℃～45℃
●
●
●
3 Years
●
●
●

Download

Data Sheet
User Manual
Certificate

Projects Cases

High performance solar street light in Colombia
Additionally, an advanced wireless intelligent control system is available which makes the solar street lights could be monitored and settable online freely.
14-08-2024
More...
Powerful solar street light

Choose our solar-powered street light for sustainable lighting, designed with an adjustable panel to maximize sunlight capture.

14-08-2024
More...
Street lighting with solar energy in Australia
All in Two solar street light series are dedicated to providing the real and continuous high brightness output for high-end project.
14-08-2024
More...
Innovative commercial solar lighting
All-in-two solar LED street lights feature an innovative design that simplifies installation by combining the benefits of all-in-one lights with the stability and flexibility of traditional models with separate components.
14-08-2024
More...

Projects Cases

High performance solar street light in Colombia
Additionally, an advanced wireless intelligent control system is available which makes the solar street lights could be monitored and settable online freely.
14-08-2024
View More
Powerful solar street light

Choose our solar-powered street light for sustainable lighting, designed with an adjustable panel to maximize sunlight capture.

14-08-2024
View More
Street lighting with solar energy in Australia
All in Two solar street light series are dedicated to providing the real and continuous high brightness output for high-end project.
14-08-2024
View More
Innovative commercial solar lighting
All-in-two solar LED street lights feature an innovative design that simplifies installation by combining the benefits of all-in-one lights with the stability and flexibility of traditional models with separate components.
14-08-2024
View More

You May Ask

1.
What is the type of solar street light battery?
 It is LiFePO4 battey, brand new 32700 or 32140 cell
2.
Can I program the light dimming accroding to different period?
Aurora's solar street lights can be programmed to adjust various settings, including LED power, working modes, and sensor modes, providing flexibility to meet diverse project requirements.
3.
What's the LED power of all-in-two solar street lights?
Auroras has three models Helios, Hermes, Thor, available from 20W-120W, adopting different battery capacity and charge controller for different power range. the power can be reprogrammed by remote if needed.
4.
What is the working temp of Hermes battery？
Regular -20℃ to 65℃. Low temperatures range from -40℃ to 65℃.
5.
Is there any other led lens with different lighting angles？
All three models including HELIOS, HERMES and THOR are adopting modular led lens 50*50mm, it is compatible with the regular led lens on the market, The lens can be changed easily with the required lighting distribution performance.
6.
What is the brand of the LED chips of AIT solar light ?
It adopts ultra-high brightness of Philips Lumileds SMD5050 chiips.
7.
Is the angle of the light head adjustable?
Yes,it can be adjusted up and down 90 degrees.
8.
What's the default working mode of All in Two solar street light?
3 hours 100%+4 hours 50%+5 hours 30%
9.
What's the pole height range that your AIT solar street light can suit?
The pole range can be 4-12m around, higher poles will require higher power solar lights.
10.
Can the light be surface anti-corrosion?
Yes, it can be customized with anti-corrosion powder.
