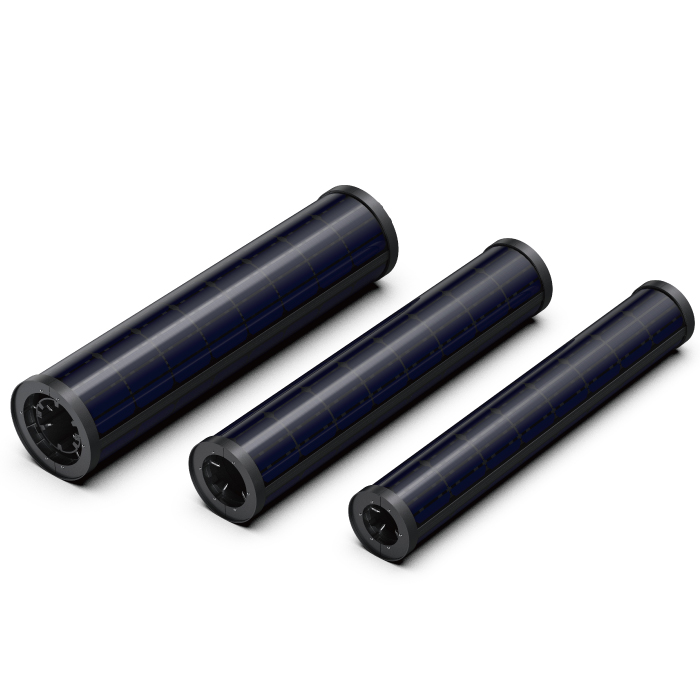

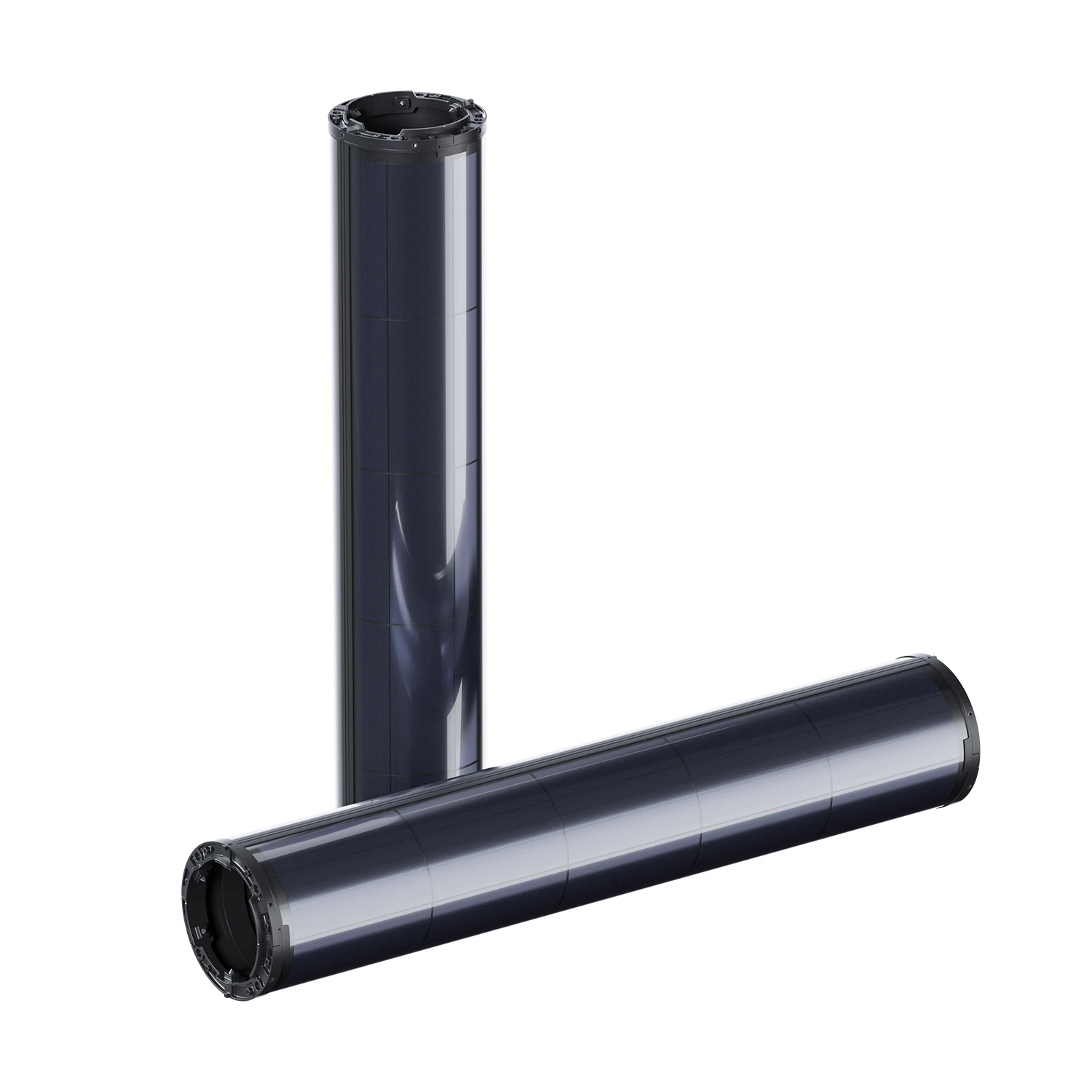

SOLARWRAP | Vertical Solar Cylinder

High Efficiency | Detachable Design | Linkable
Model Number
S80
S100
P.max
80W
100W
Dimension
D160*1080mm
D190*1080mm
Max Pole Size
90mm
130mm
Warranty
5 Years
vertical solar cylinder
vertical solar module
vertical solar tube
vertical solar street light
vertical solar pole light
integrated vertical street pole light
vertical solar cylinder
vertical solar module
vertical solar tube
vertical solar street light
vertical solar pole light
integrated vertical street pole light

SOLARWRAP | Vertical Solar Cylinder

High Efficiency | Detachable Design | Linkable
Model Number
S80
S100
P.max
80W
100W
Dimension
D160*1080mm
D190*1080mm
Max Pole Size
90mm
130mm
Warranty
5 Years
Send inquiry
More info
Designed in U.S.A and assembled in P.R.C, SolarWrap vertical solar cylinder represents an innovative solution tailored for pole-mounted applications. Distinguished from conventional solar panels, poles equipped with the SolarWrap cylinder exhibit exceptional aesthetic appeal, seamlessly integrating into serene environments while retaining the appearance of traditional poles, albeit enhanced with beauty. Its versatility extends to various applications including solar light poles, solar camera poles, and solar traffic signs.

Employing SUNPOWER cells manufactured in the U.S.A., the SolarWrap boasts remarkable power generation efficiency, capable of flexing without cracking and outperforming traditional monocrystalline solar panels by 10% in low-light conditions. Protected by tempered glass, it withstands wind, sand, and UV exposure, resisting dust accumulation and ensuring a service life exceeding 20 years. Multiple SolarWrap units can be mounted on a single pole to enhance power generation.

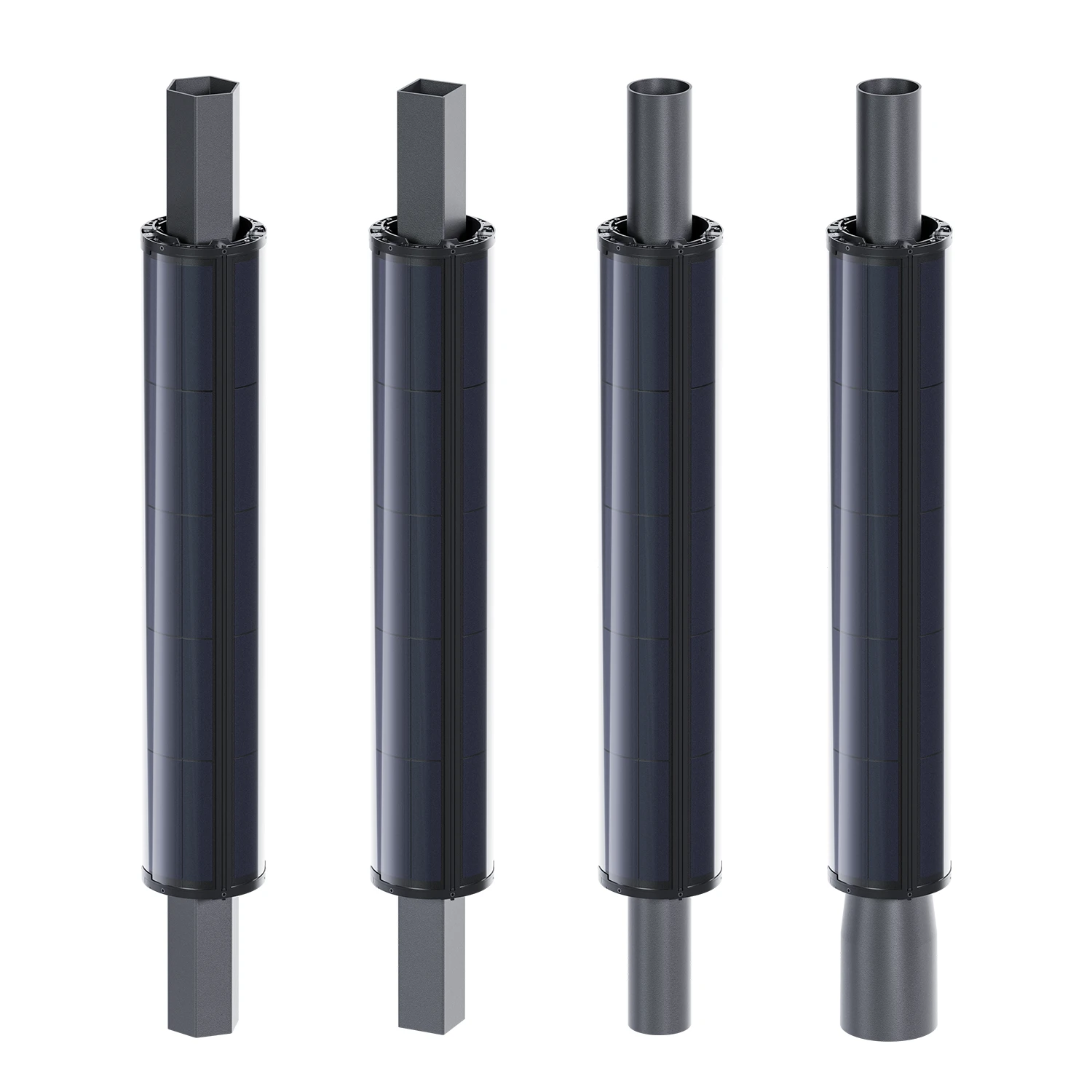

Featuring a modular design, the SolarWrap is easily installable and adaptable to diverse pole shapes such as round, hexagonal, octagonal, or conical, within specified diameter limits. Retrofitting existing poles, including traditional metal halide street lights into solar-powered poles is achievable with the SolarWrap. To cater to varied applications, three models of the SolarWrap are available, ensuring compatibility with diverse project requirements.

Key Componente & Advantages

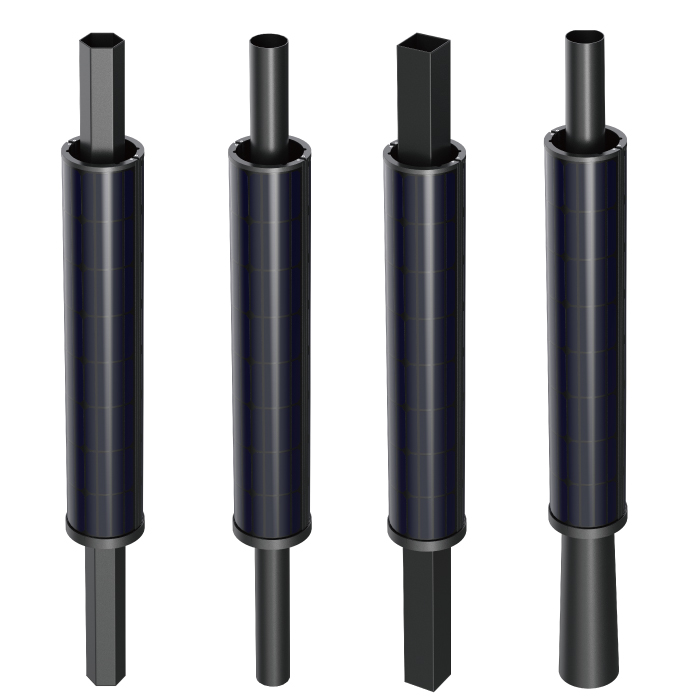

Fit to Different Size
SolarWrap vertical solar cylinder is able to cater to different sizes and different shapes of mounting poles。
Snow Free in Winter
There is no risk of less or even no power generation from solar panel caused by snow accumulation in winter time.
Patented Design
Original designs of intellectual property are made by our team and protected with rich experience.
360° Full Day Charging
Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.
Dust & Sand Free
Sand & dust will not accumulate on the vertically installed solar panel. no need to clean the solar panels frequently

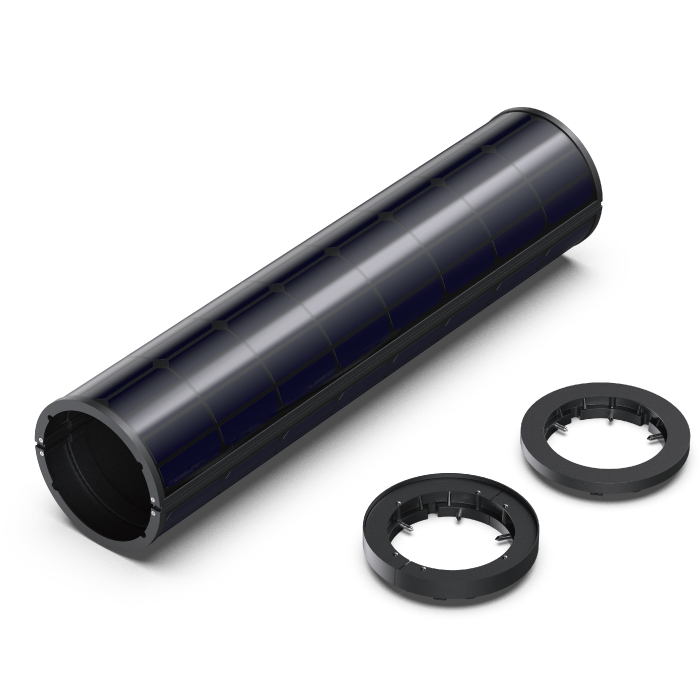

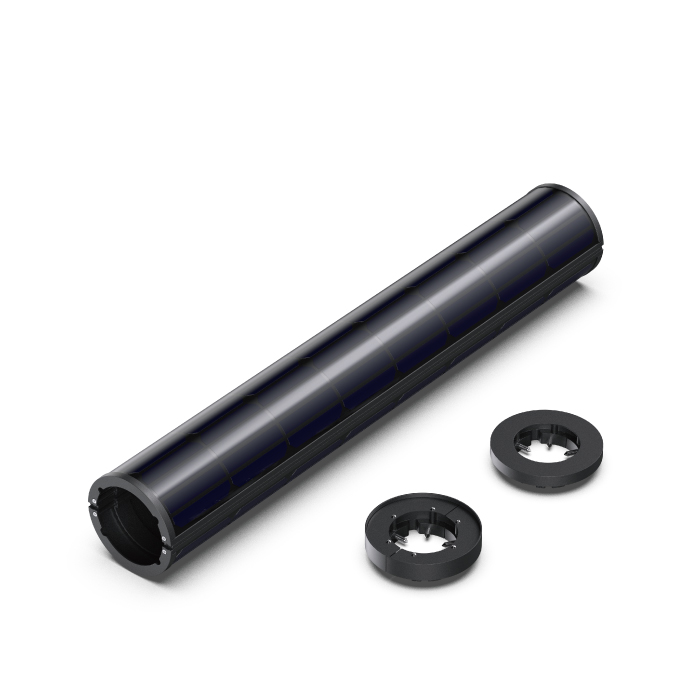

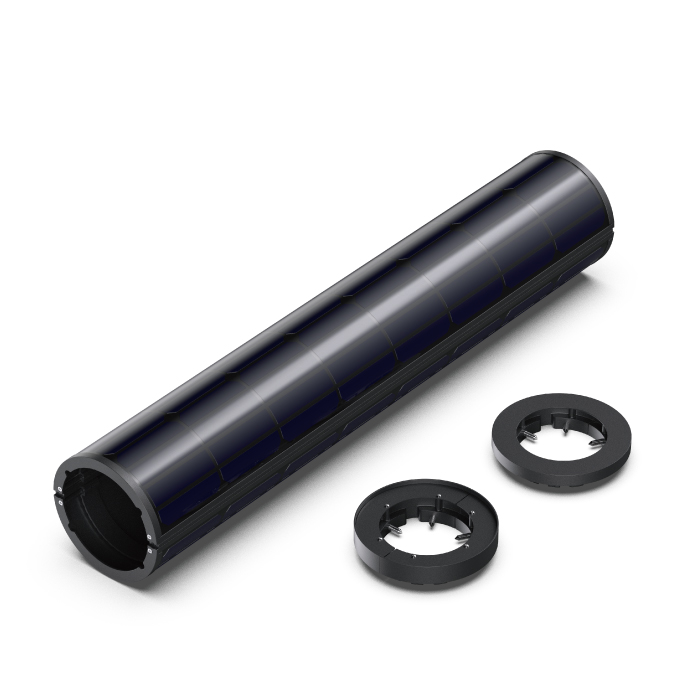

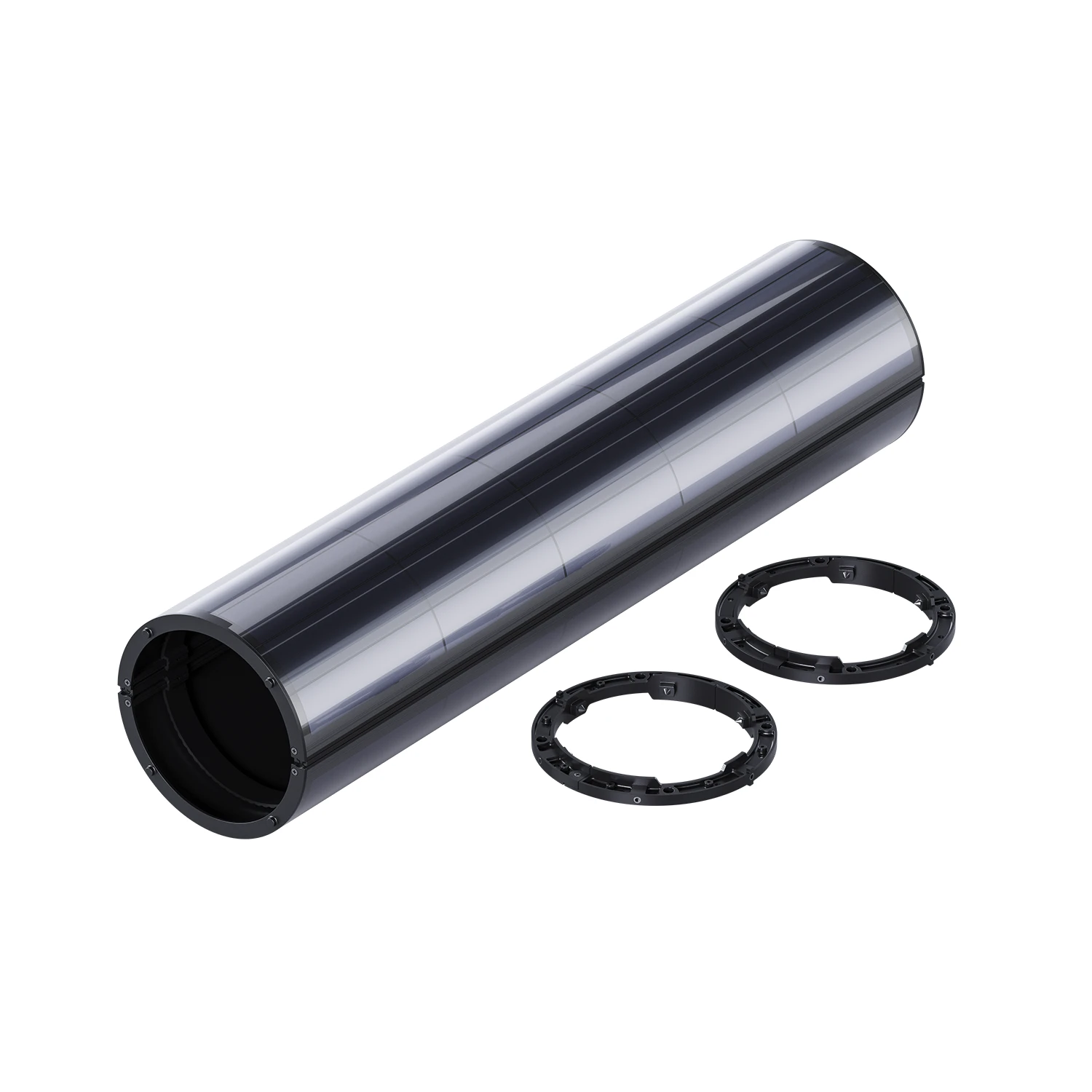

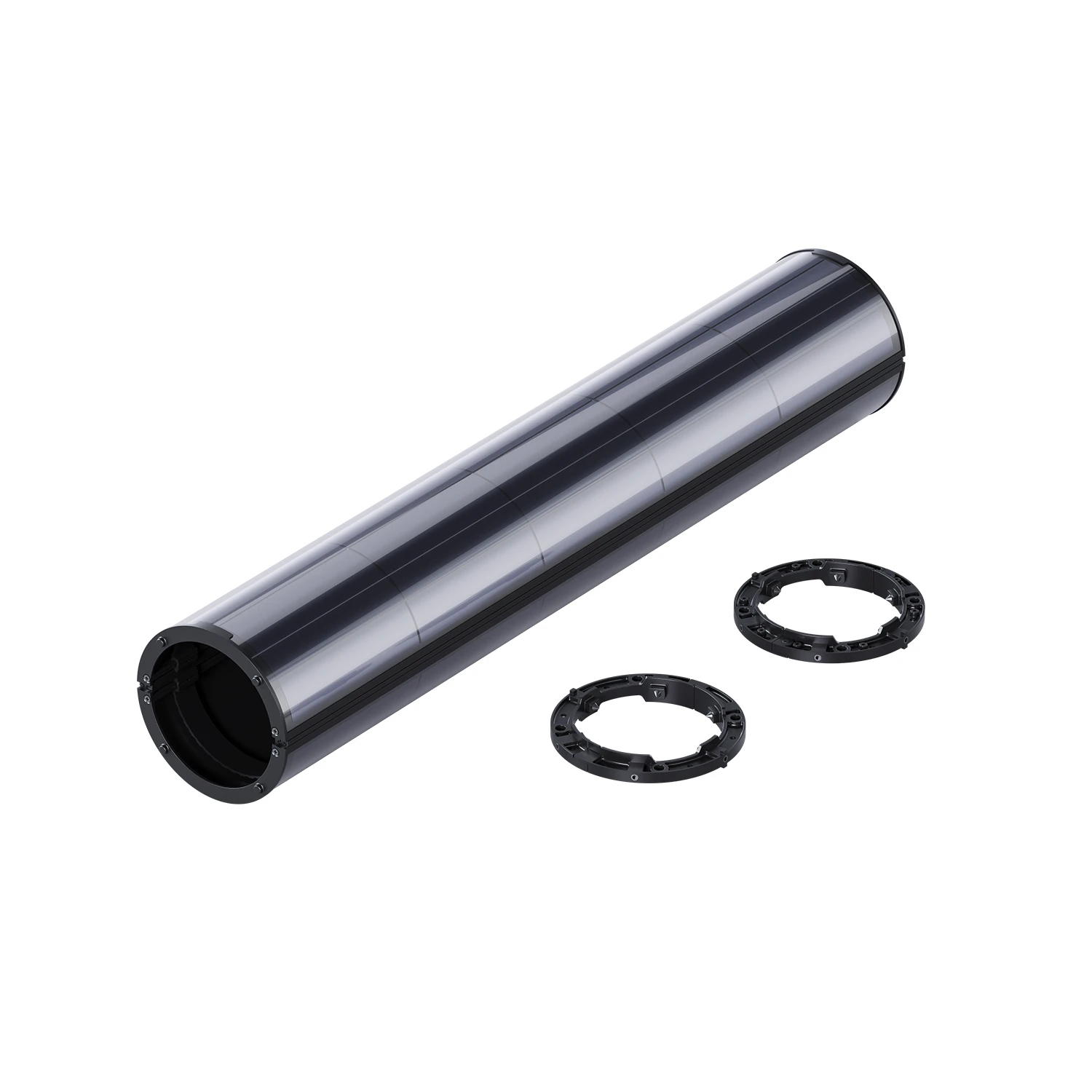

Modular Installation
It adopts modular concepts and uses male and female sliding installation structures to make the installation easier。
No Risk from Hailstone
There is no any risk of damage from hailstone which will smash the glass of solar panel.
Strong Wind Resistance
Smaller area facing wind, it has very great wind resistant performance up to 160km/H.

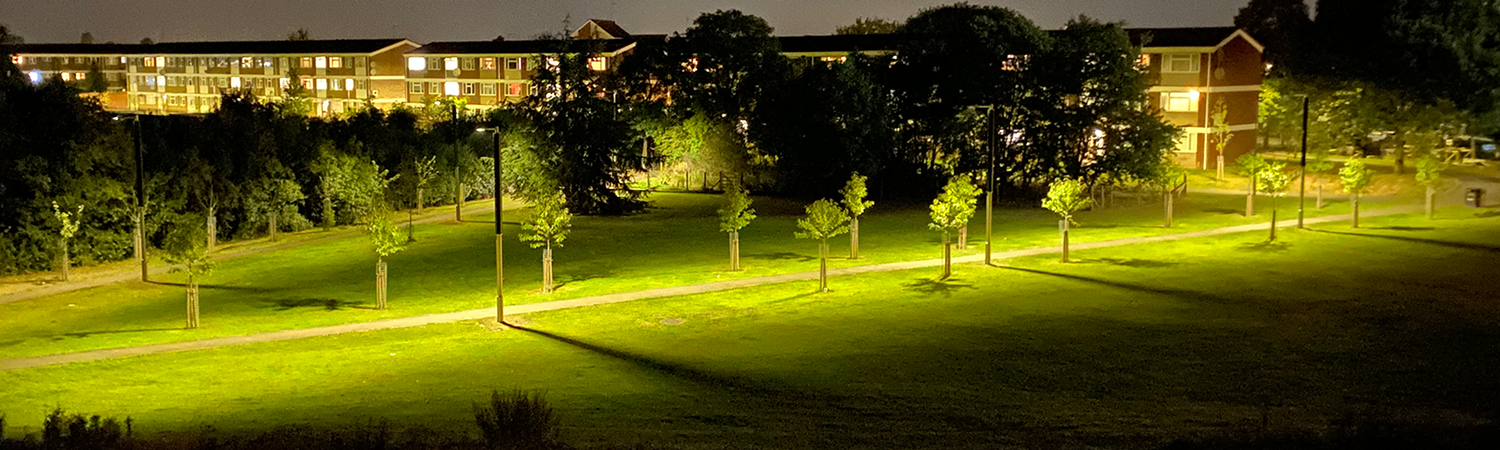

Aesthetics Appearance
The poles adopted vertical PV cylinder blend into environments perfectly without disturbing the beauty of the view.

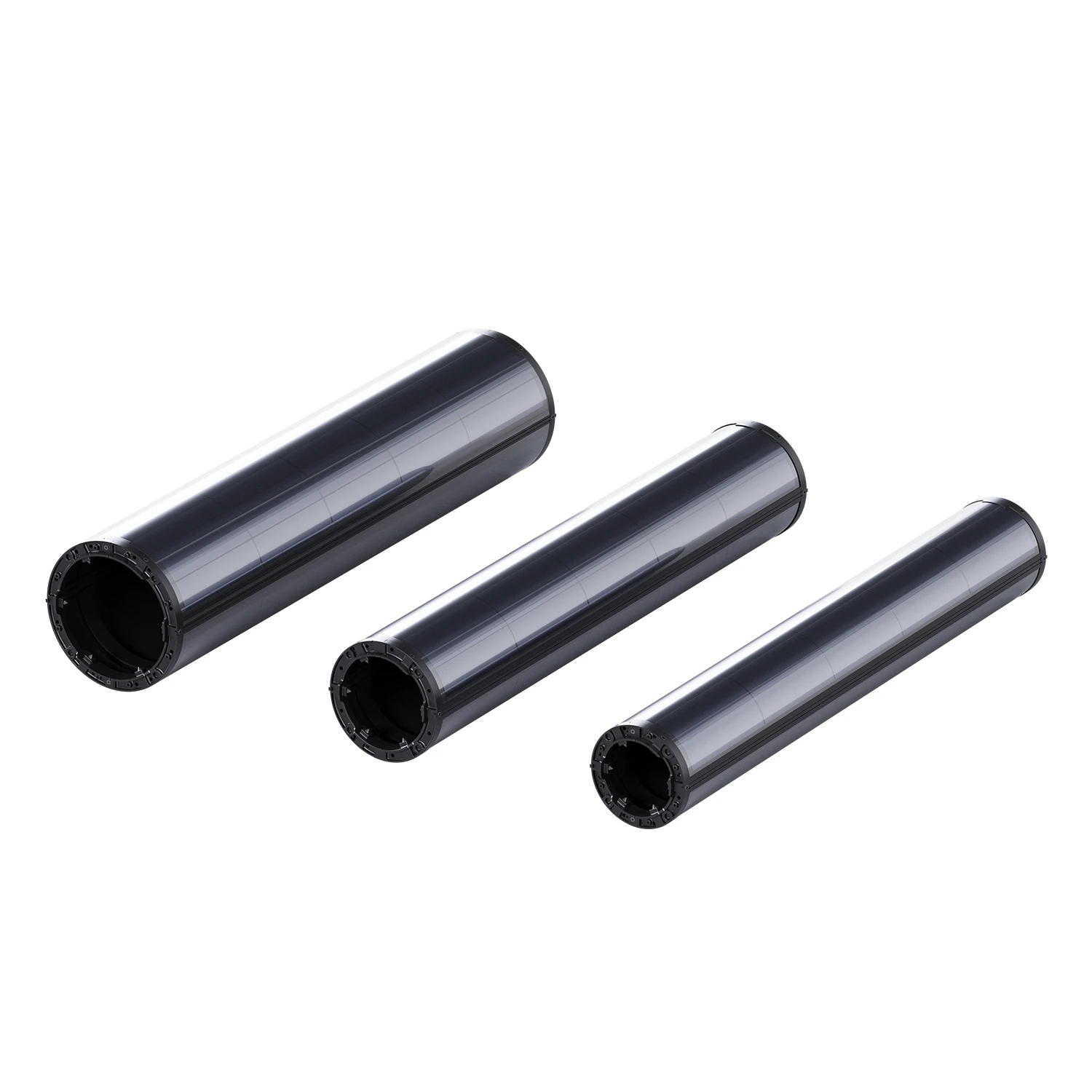

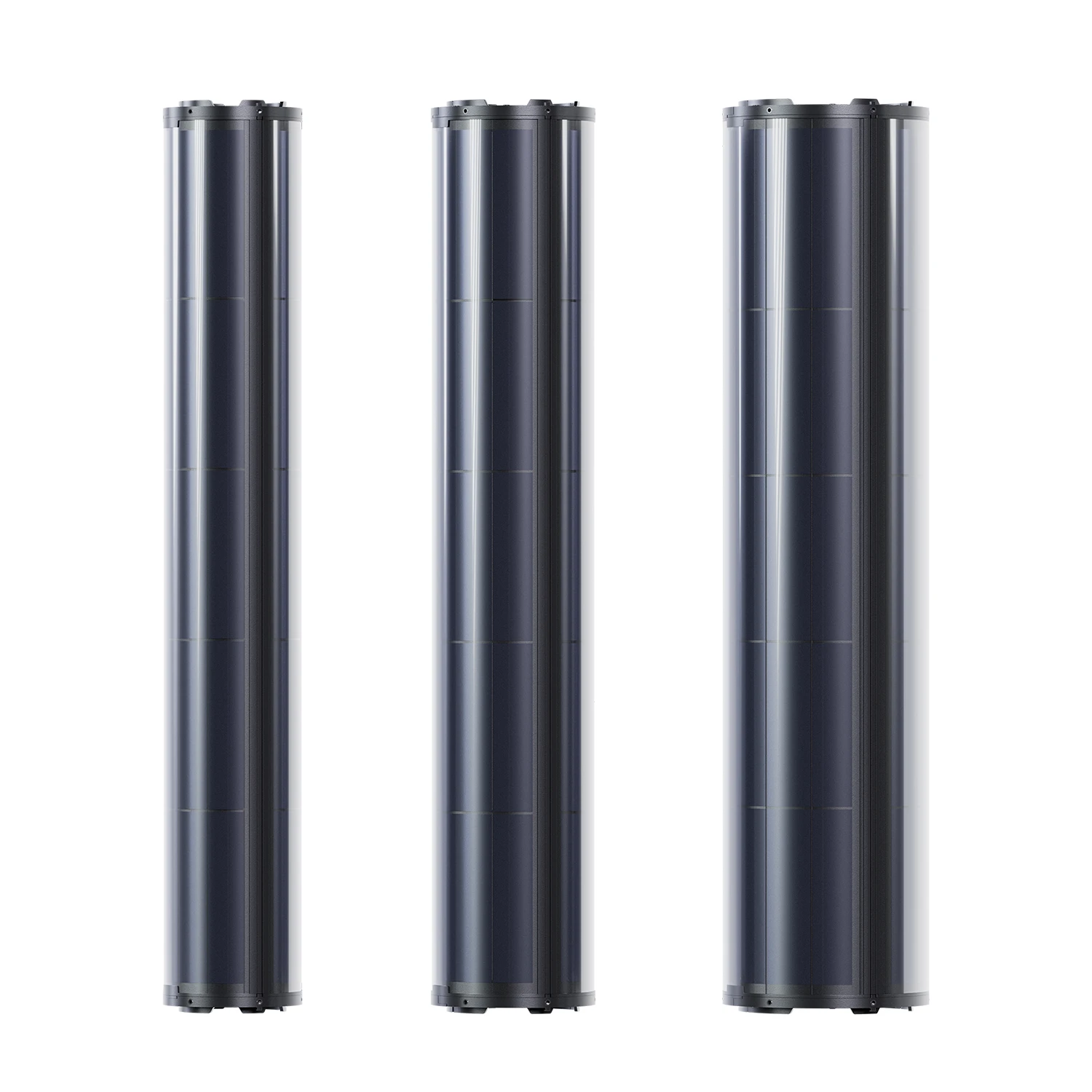

Main Specification

Model
S80
S100
S140
Pmax
80W
100W
140W
Vmp
6V | 9V
6V | 9V
9V
Imp
13.3A | 8.9A
16.6A | 11.1A
15.56A
Dimension
D160*1080mm
D190*1080mm
D240*1080mm
Cell Type
SUNPOWER
Cell efficiency
>22.5%
Material
Tempered Glass
Max Pole Dia
90mm max
130mm max
180mm max
Net Weight
7.50kg
9.50kg
10.80kg
Cable & Connector
2.5mm with MC4 plugs
Lifetime
>20 years
Operating Temp.
-20℃ ~ +70℃
Warranty
5 Years
Certificates
CE RoHS IEC

Main Specification

Model
Pmax
Vmp
Imp
Dimension
Cell Type
Cell efficiency
Material
Max Pole Dia
Net Weight
Cable & Connector
Lifetime
Operating Temp.
Warranty
Certificates
S80
S100
S140
80W
100W
140W
6V | 9V
6V | 9V
9V
13.3A | 8.9A
16.6A | 11.1A
15.56A
D160*1080mm
D190*1080mm
D240*1080mm
SUNPOWER
>22.5%
Tempered Glass
90mm max
130mm max
180mm max
7.50kg
9.50kg
10.80kg
2.5mm with MC4 plugs
>20 years
-20℃ ~ +70℃
5 Years
CE RoHS IEC

Download

Data Sheet
User Manual
Certificate
1.
Datasheet of Solarwrap
7.56 MB
*.rar
1.
User Manual of Solarwrap
6.19 MB
*.rar
1.
Certificates of SolarWrap
3.03 MB
*.rar

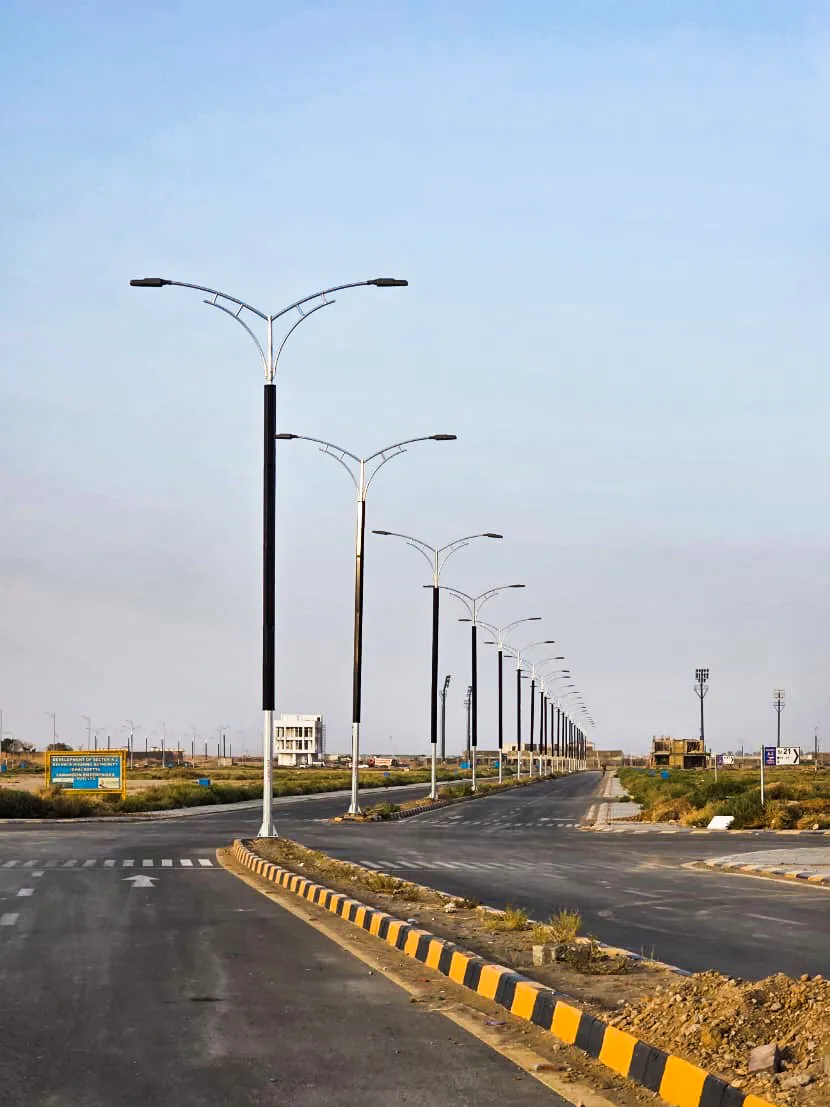

Projects Cases

Projects Cases

You May Ask

1.
What's the superiority of round solar modules compared with hexagon module?
More exquisite appearance and higher space utilization
2.
Can this vertical solar module be used for other applications?
It can be used for solar monitors, solar signal light, solar powered speakers, etc
3.
What is the IK rating of the module?
It uses 3.2mm tempered glass, reaching to IK08
4.
Can you make the length of each solar module longer? For example: 2m per module?
Due to the tempered glass technology,  for moment, we are not able to make it longer.
5.
What is the use efficiency of round solar module comparing with regular flat solar panel?
It is only 25~30% depends on the latitude of the projects located in.
6.
Can i use multi-modules in one pole?
Yes, Multi solar modules can be connected in parallel to get high power up to 2000W in one diagram.
7.
Do you accept OEM for this SolarWrap?
Yes, MOQ 500 pcs per item
