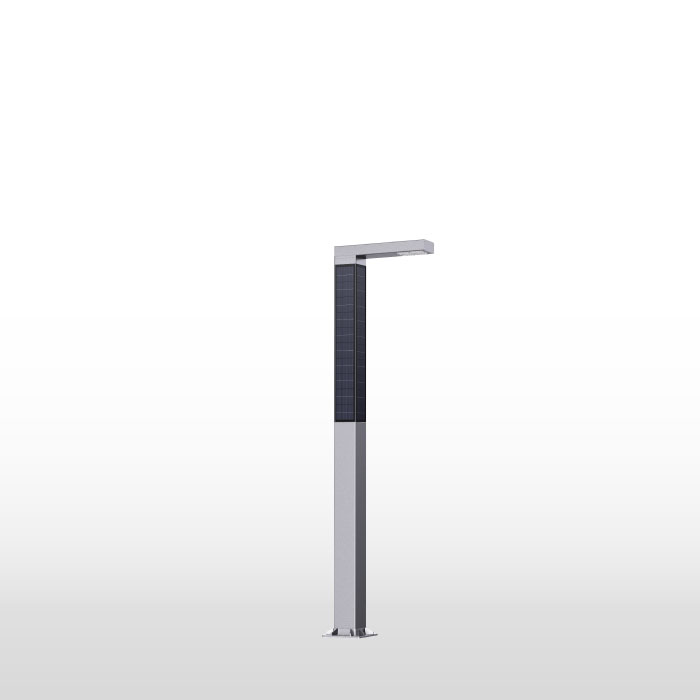

3.5M Vertical Solar Lighting Column

3.5~10M | Sleek Design | Wind-Resistant

Model Number

SK-3201L

SK-3801L

LED Power

20W

30W

Luminous Flux

3,600lm

5,400lm

Solar Panel

220W+26W

LiFePO4 Battery

12.8V 460WH

12.8V 615WH

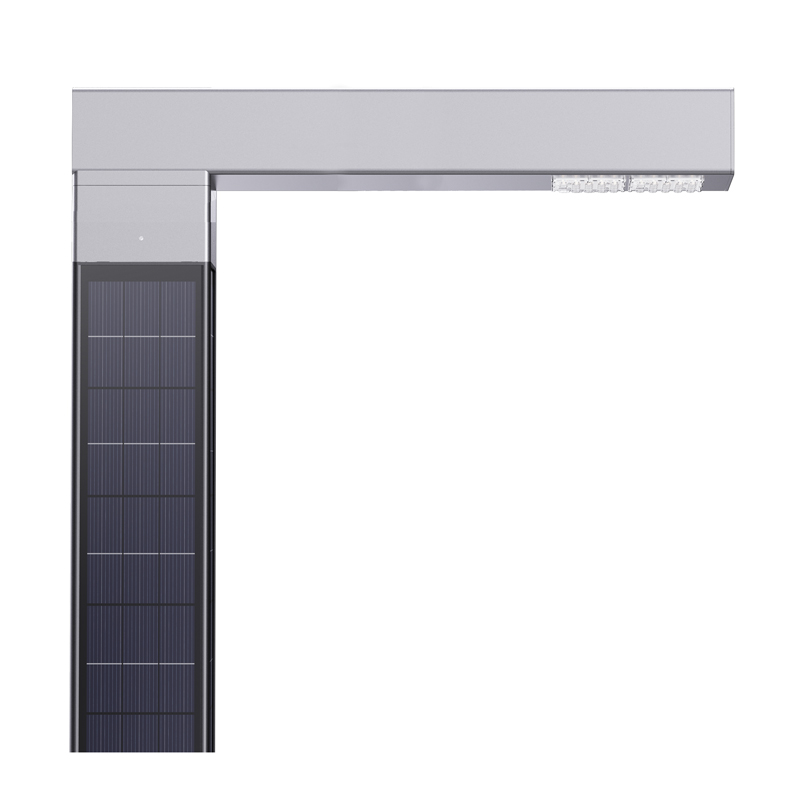

SKYBEAM is a solar lighting pole that combines simplicity with exceptional performance. Its vertically mounted solar panel offers a modern design with enhanced wind resistance, minimal dust accumulation, and no snow buildup in winter. Powered by high-efficiency solar panel and durable lithium batteriy, SKYBEAM could provides reliable illumination with 3 to 5 days backup even in extreme weather.

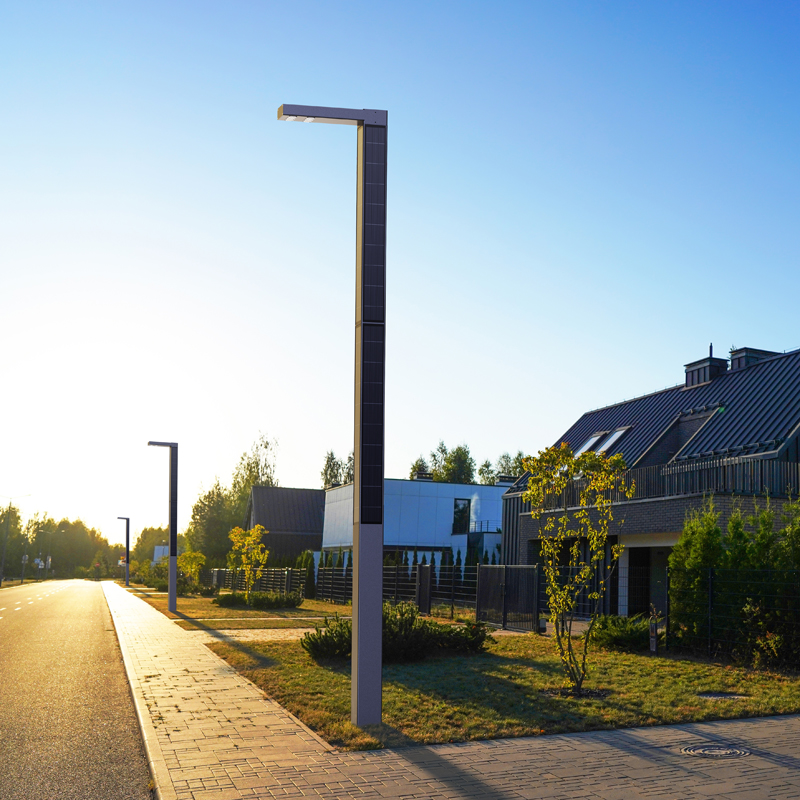

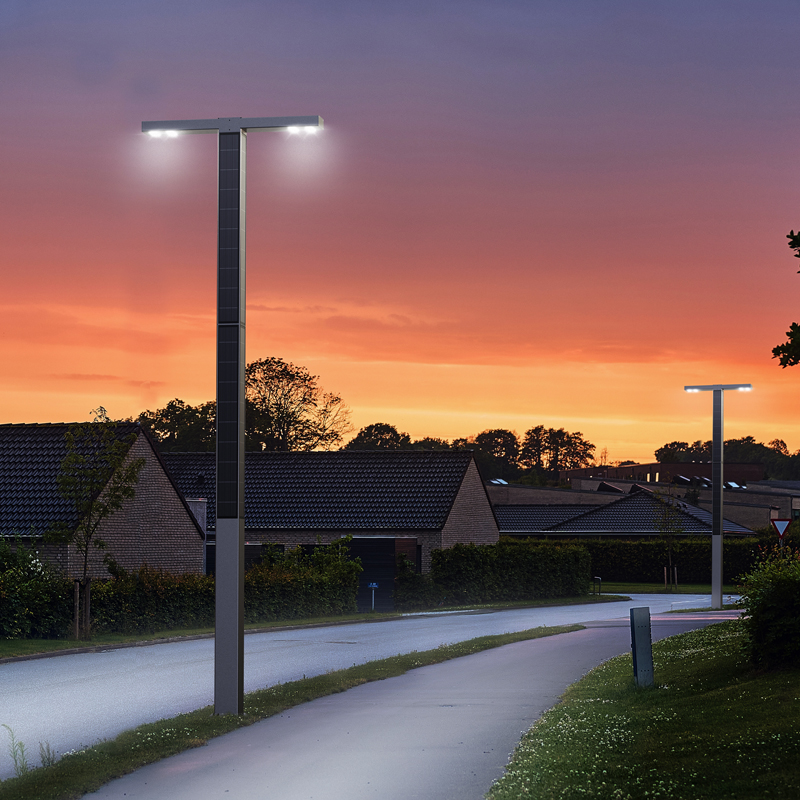

The pole features a stretch-aluminum and modular solar module, with various heights optional, it can meet any projects requirements. It also includes a smart wireless system with Zhaga socket , allowing remote monitoring of battery voltage, charging capacity, and power usage etc and also realize to turn ON/OFF, and dim the light etc. Ideal for residential areas, parks, and public spaces, SKYBEAM blends seamlessly into its surroundings, offering both functionality and aesthetic appeal. It’s the perfect choice for eco-friendly, reliable lighting.

Key Componente & Advantages

Long LifeTime Battery

Quality lithium battery Long-lasting reduce maintenance costs and increase system reliability.

Motion Sensor

PIR or microwave sensor could be enabled to save more energy and extend the lifetime and more days autonomy.

Snow Free in Winter

There is no risk of less or even no power generation from solar panel caused by snow accumulation in winter time.

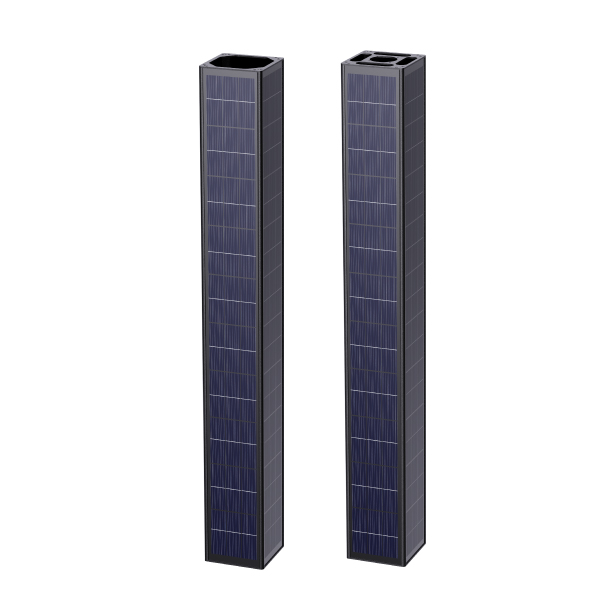

360° Full Day Charging

Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.

No Risk from Hailstone

There is no any risk of damage from hailstone which will smash the glass of solar panel.

Strong Wind Resistance

Smaller area facing wind, it has very great wind resistant performance up to 160km/H.

Main Specification

Product Name

SkyBeam Series

SKU Code

SK-3201L

SK-3801L

SK-4202L

SK-4801L

LED Power

20 Watt

30 Watt

20Watt*2Pcs

50 Watt

Luminous Flux

3,600lm

5,400lm

3,600lm*2Pcs

9,000lm

CCT Range

2200K~6500K

●

Beam Angle

LEDil Optics

●

Battery Capacity

12.8V 460WH

12.8V 615WH

12.8V 768WH

Autonomy

3~5 days

●

Solar Controller

97% MPPT

●

Motion Sensor

PIR / Microwave

●

Wireless Control

Optional

●

Hybrid Version

Optional

●

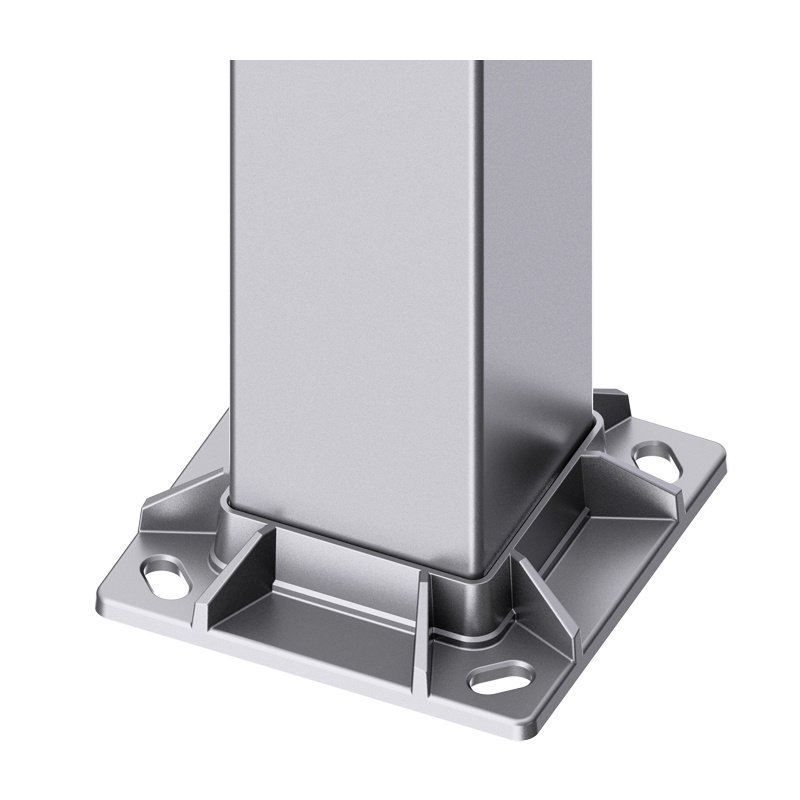

Pole Height

3,200mm

3,800mm

4,200mm

4,800mm

Solar Panel

220W + 26W

280W + 52W

280W + 26W

Fixture Color

Grey / Black

●

Pole Material

Aluminium Alloy

●

Certificates

CE, ROHS, CB

●

Warranty

5 Years

●

Main Specification

Product Name

SKU Code

LED Power

Luminous Flux

CCT Range

Beam Angle

Battery Capacity

Autonomy

Solar Controller

Motion Sensor

Wireless Control

Hybrid Version

Pole Height

Solar Panel

Fixture Color

Pole Material

Certificates

Warranty

SkyBeam Series

SK-3201L

SK-3801L

SK-4202L

SK-4801L

20 Watt

30 Watt

20Watt*2Pcs

50 Watt

3,600lm

5,400lm

3,600lm*2Pcs

9,000lm

2200K~6500K

●

LEDil Optics

●

12.8V 460WH

12.8V 615WH

12.8V 768WH

3~5 days

●

97% MPPT

●

PIR / Microwave

●

Optional

●

Optional

●

3,200mm

3,800mm

4,200mm

4,800mm

220W + 26W

280W + 52W

280W + 26W

Grey / Black

●

Aluminium Alloy

●

CE, ROHS, CB

●

5 Years

●

Download

Data Sheet

User Manual

Certificate

You May Ask

Can you change the height of the pole?

Yes, the height of the SkyBeam solar lighting column can be modified according to your requirements. For example, our standard height is 3200mm, then we can have 3300mm, 3400mm etc any heights as you wish.

What is the max height of this SkyBeam solar pole light?

The regular height of SkyBeam is 6M max due to the features of aluminum alloy. so we can use aluminum alloy to produce this solar pole light for all the heights less than 6 meters, for more than 6 meters height, the pole material will be steel instead of aluminum alloy, and height could be up to 10 meters even 12 meters as required.

Can you lift up the light head a bit? i don't like the horizontal design.

Yes, We can modify the design as you require. No problem.

Can i engrave my LOGO on this SkyBeam light pole?

Yes, Sure, We can use laser machine to engrave your logo on the light, And it is free of charge completely.

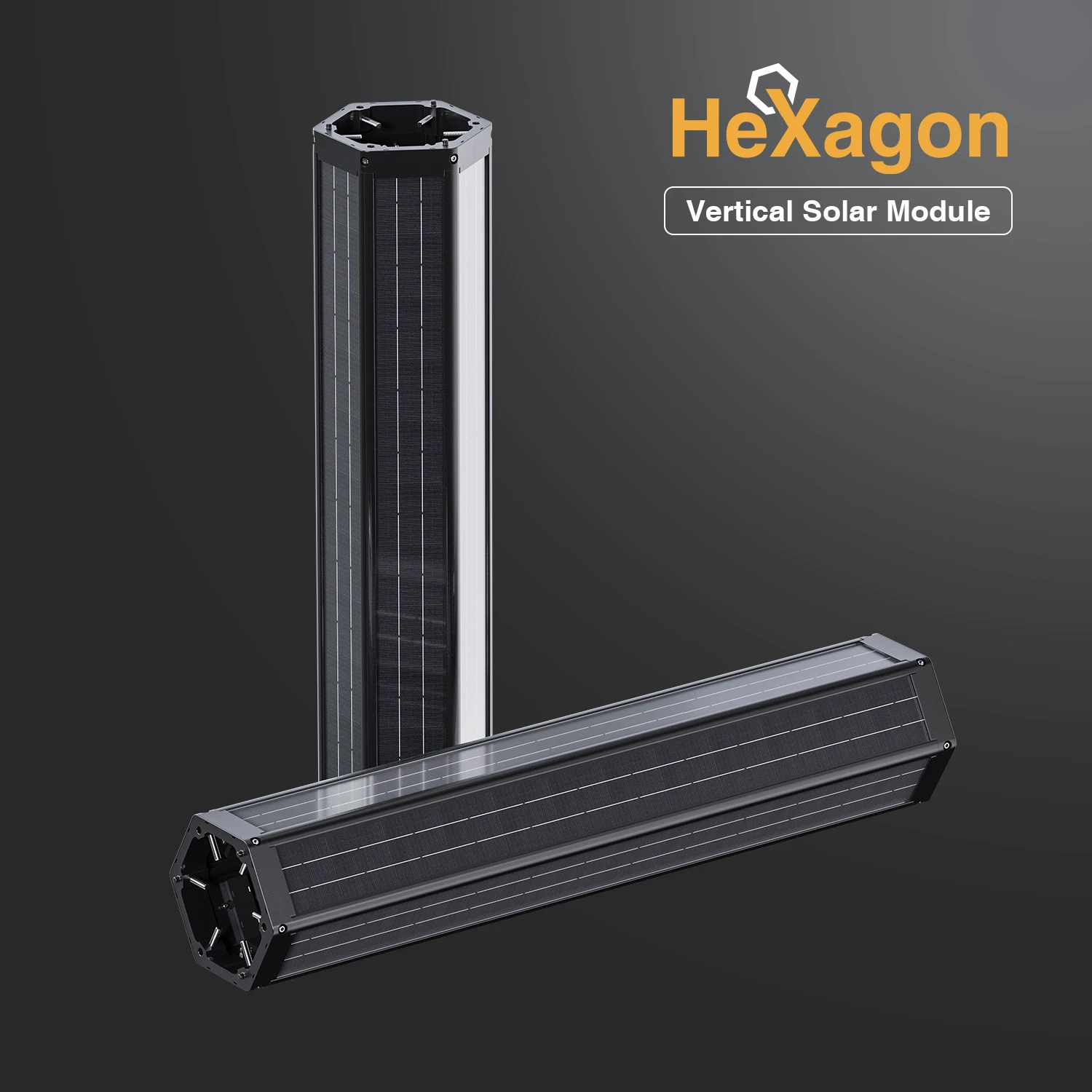

Can i increase or descrease the numbers of vertical PV module?

Yes, We can use the suitable size of PV module according to the height of pole. And the cost of the pole will be different.

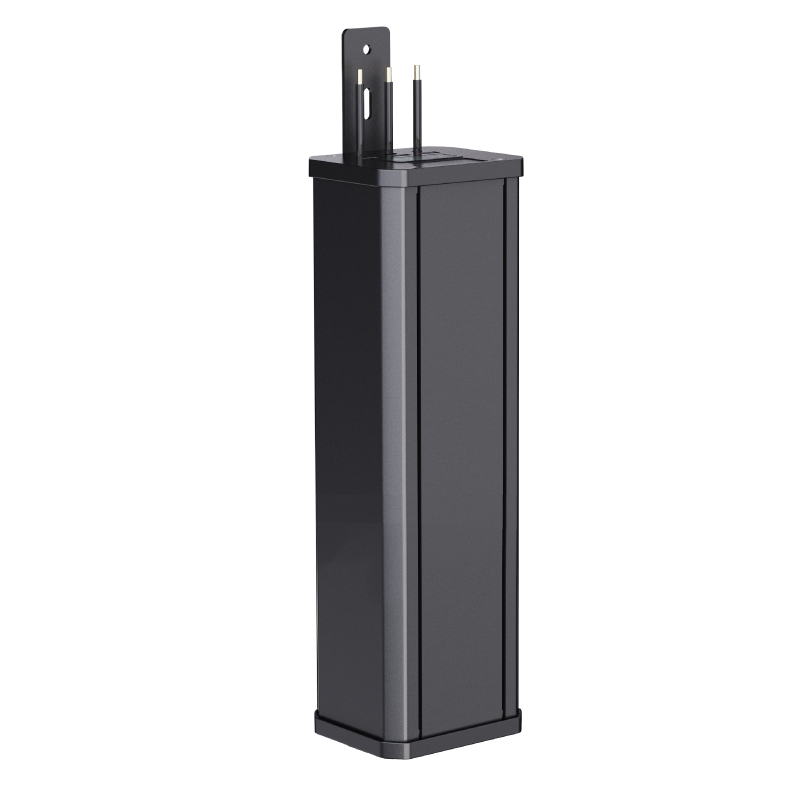

Where is the lithium battery build?

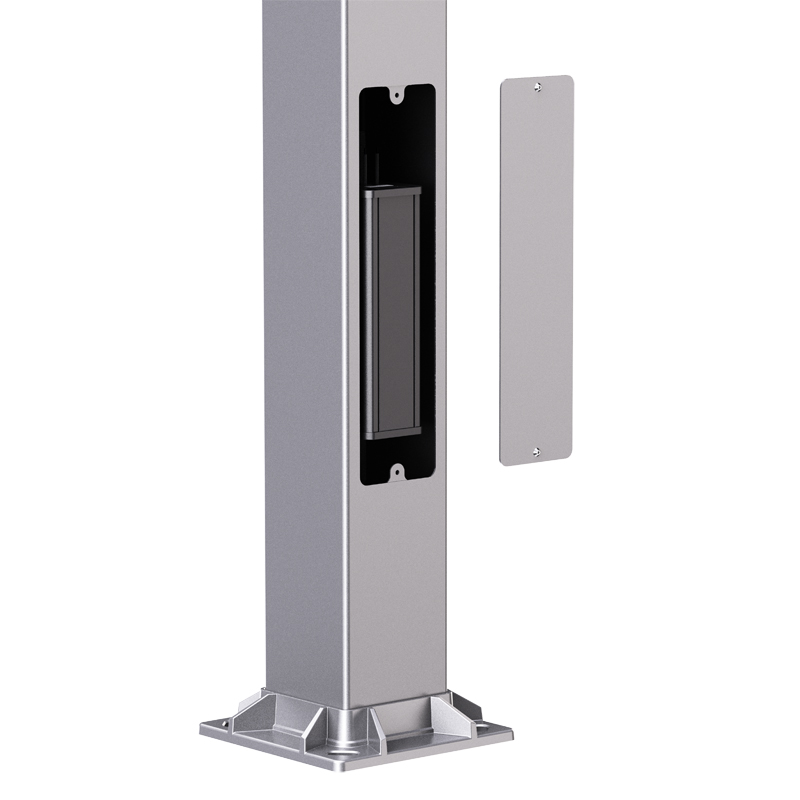

The battery is built inside of the pole at the bottom part for easy accessing for maintenance or replacement. We can can put the battery into the light arm as long as the battery size is suitable.

Is there a motion sensor in the pole? And where it is?

Yes, The motion senor is available and it is equipped in the light head, It can be PIR motion sensor and also can be microwave sensor.

Can you use a lithium battery with much bigger capacity?

Yes, in the default configuration of the solar lighting pole, The battery capacity is based on our recommendation. We can use bigger lithium battery for more days automony as you require.

Can i use steel pole instead of aluminum alloy for cheaper price?

Yes, the price of using steel pole is much cheaper than using aluminum pole, while the steel pole will be much heavier and not so smooth finishing than aluminum pole.

10.

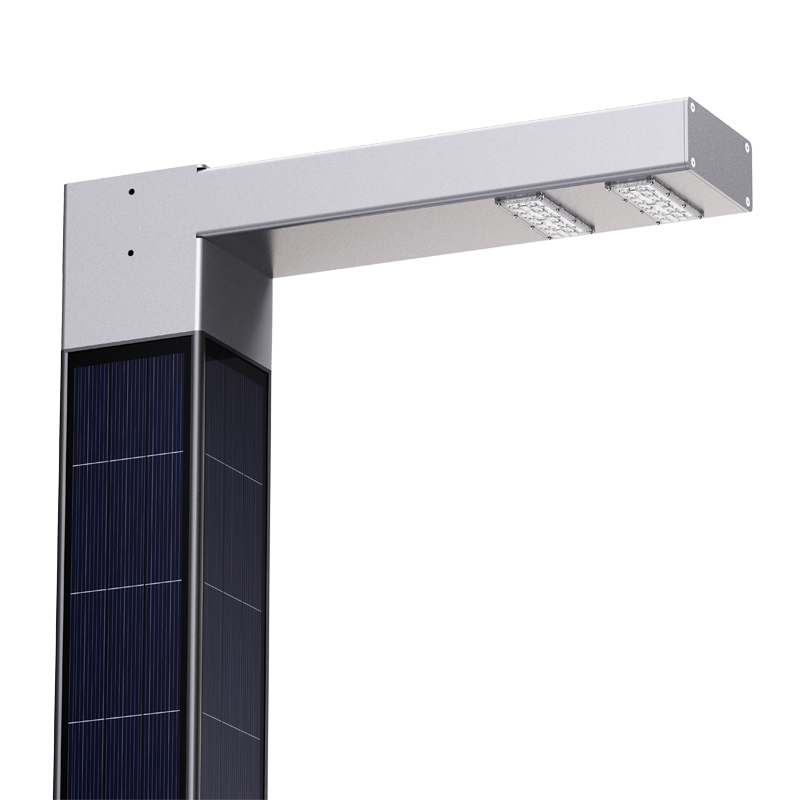

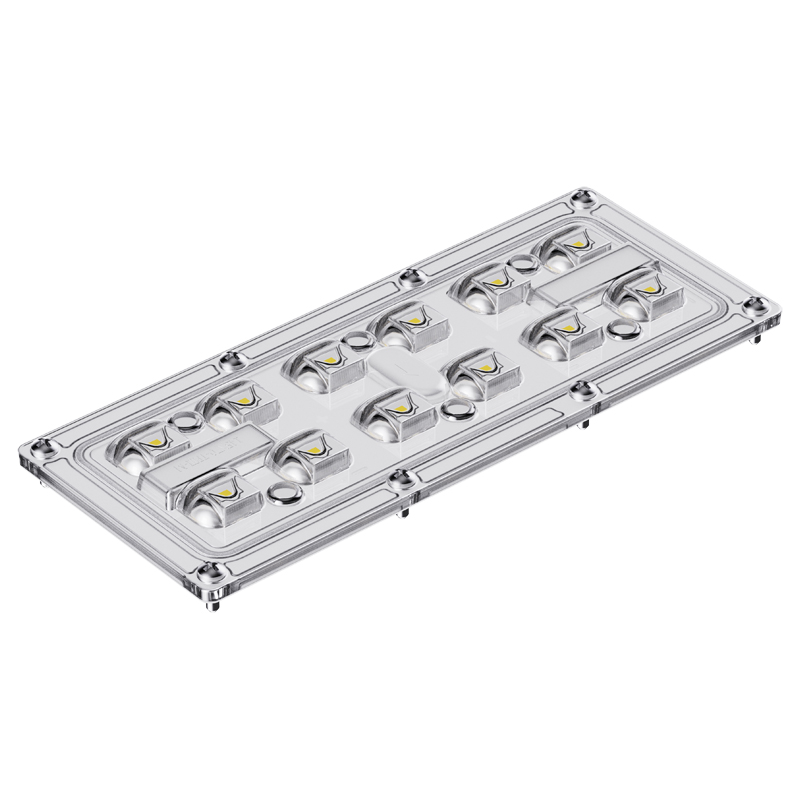

What LED optics do you use? Do you have IES?

The best led optics from LEDil are equipped as the standard optic for SkyBeam Vertical Solar Pole Light. There are more than 20 pcs of optics with different lighting performance to satisy any lighting requirement for your projects.
