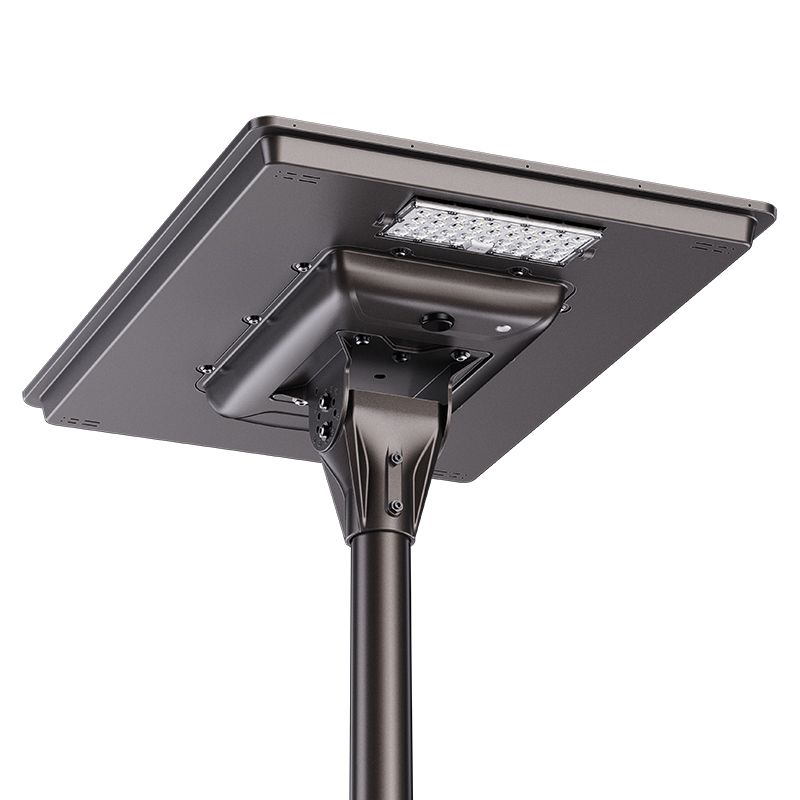

80W AIO Solar Street Light

Heavy Duty | Wind Resistant | 170lm/W

Model No.

AIO-80WS

AIO-100WS

LED Power

80W

100W

LFP Battery

615WH

768WH

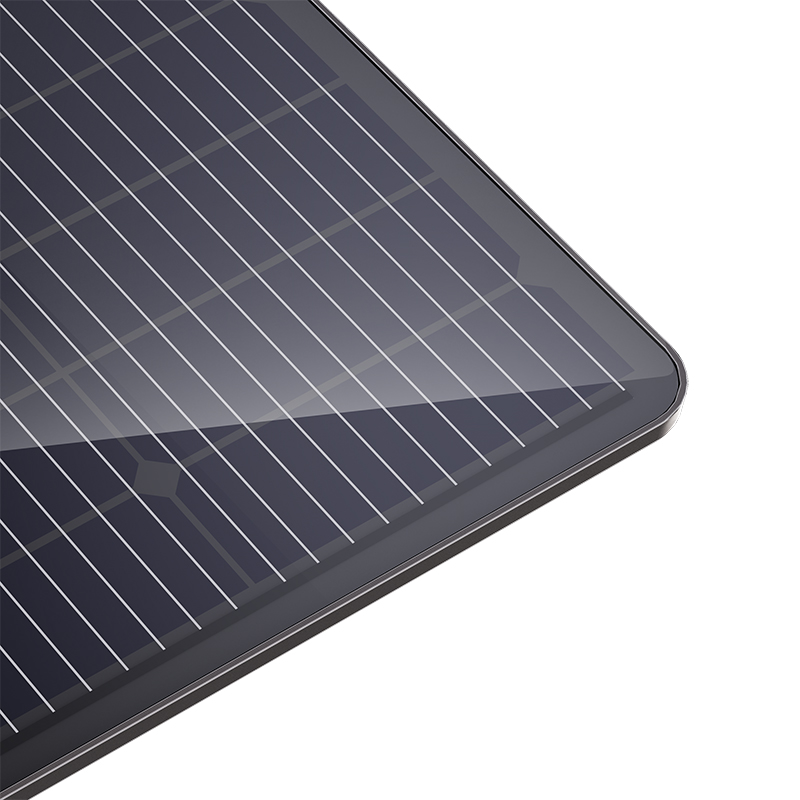

Solar Panel

125W 36V

Warranty

5 Years

●

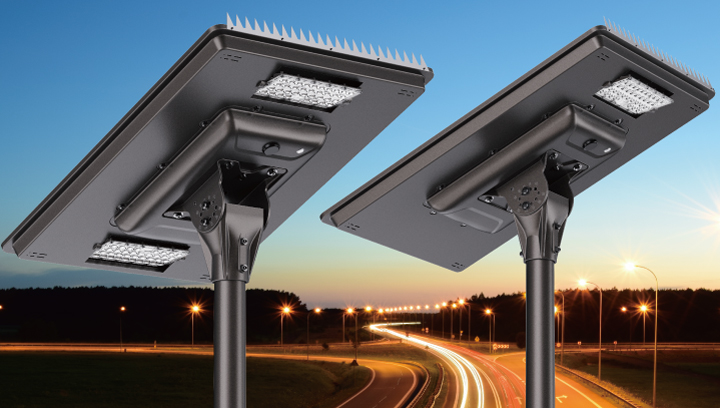

Introducing SATURN, the pinnacle of solar lighting design. Crafted with a robust and ultra-thick casing, this solar light is built to withstand extreme winds and resist the harsh effects of salty corrosion. Its sleek and modern appearance enhances the aesthetics of any setting while delivering unparalleled durability. SATURN is versatile, perfect for parking lots, squares, residential areas, walkways, and bike paths, especially in coastal regions or islands where resilience is paramount. For enhanced reliability, it offers a hybrid 220V and solar-powered version, ensuring uninterrupted performance.

Engineered for premium projects, SATURN combines cutting-edge technology with exceptional design, providing unmatched functionality and elegance. Elevate your lighting projects with a solution that’s as tough as it is beautiful.

Key Componente & Advantages

IK10 Vandal Resistant

IK10 rating ensures exceptional durability and impact resistance, making products ideal for harsh environments.

Anti Corrosion Surface

Salt fog resistance ensures durability and longevity in harsh coastal environments.

Motion Sensor

PIR or microwave sensor could be enabled to save more energy and extend the lifetime and more days autonomy.

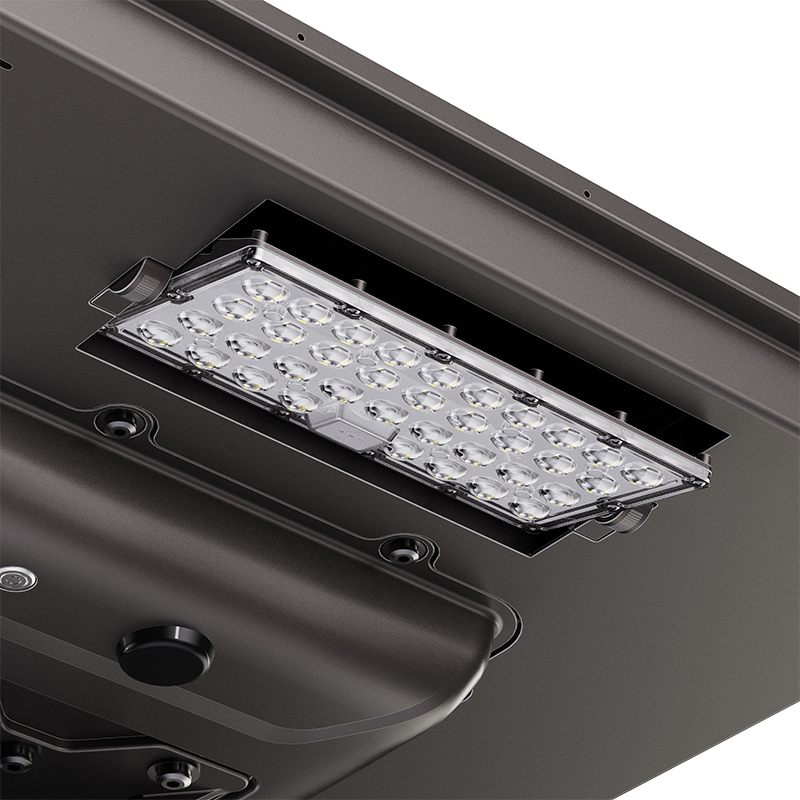

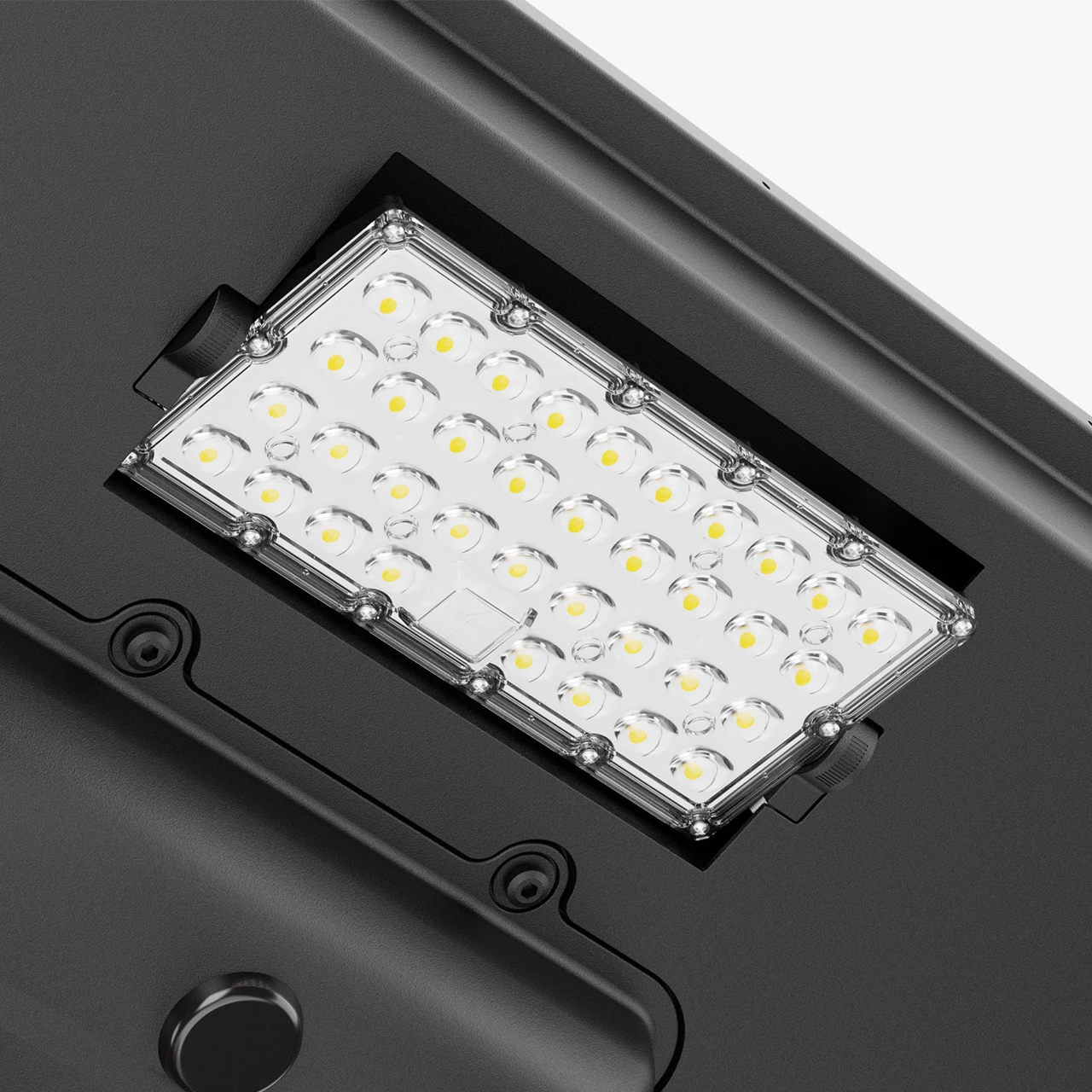

Adjustable LED Module

The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.

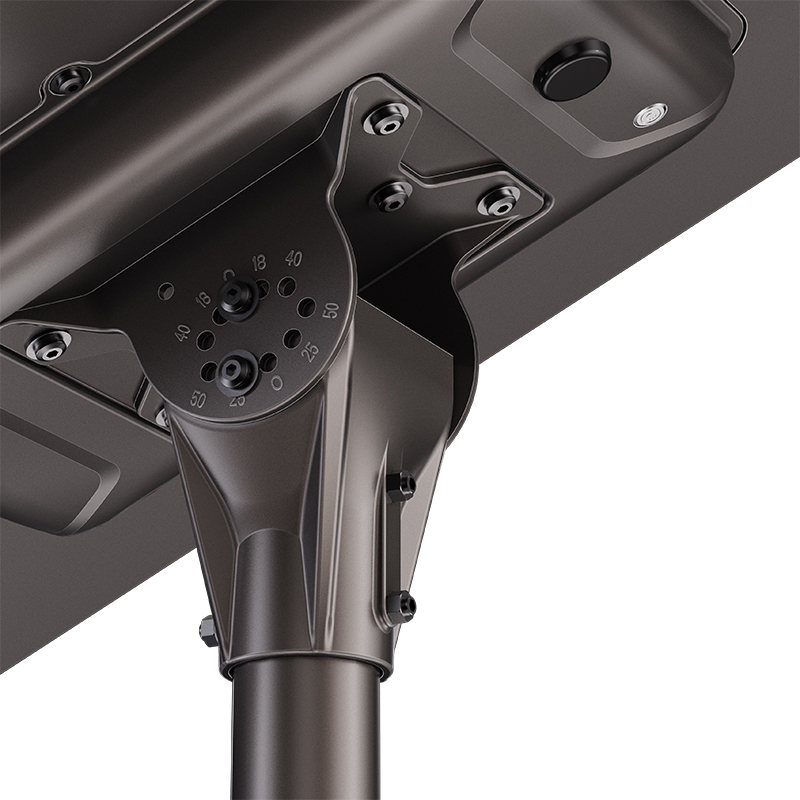

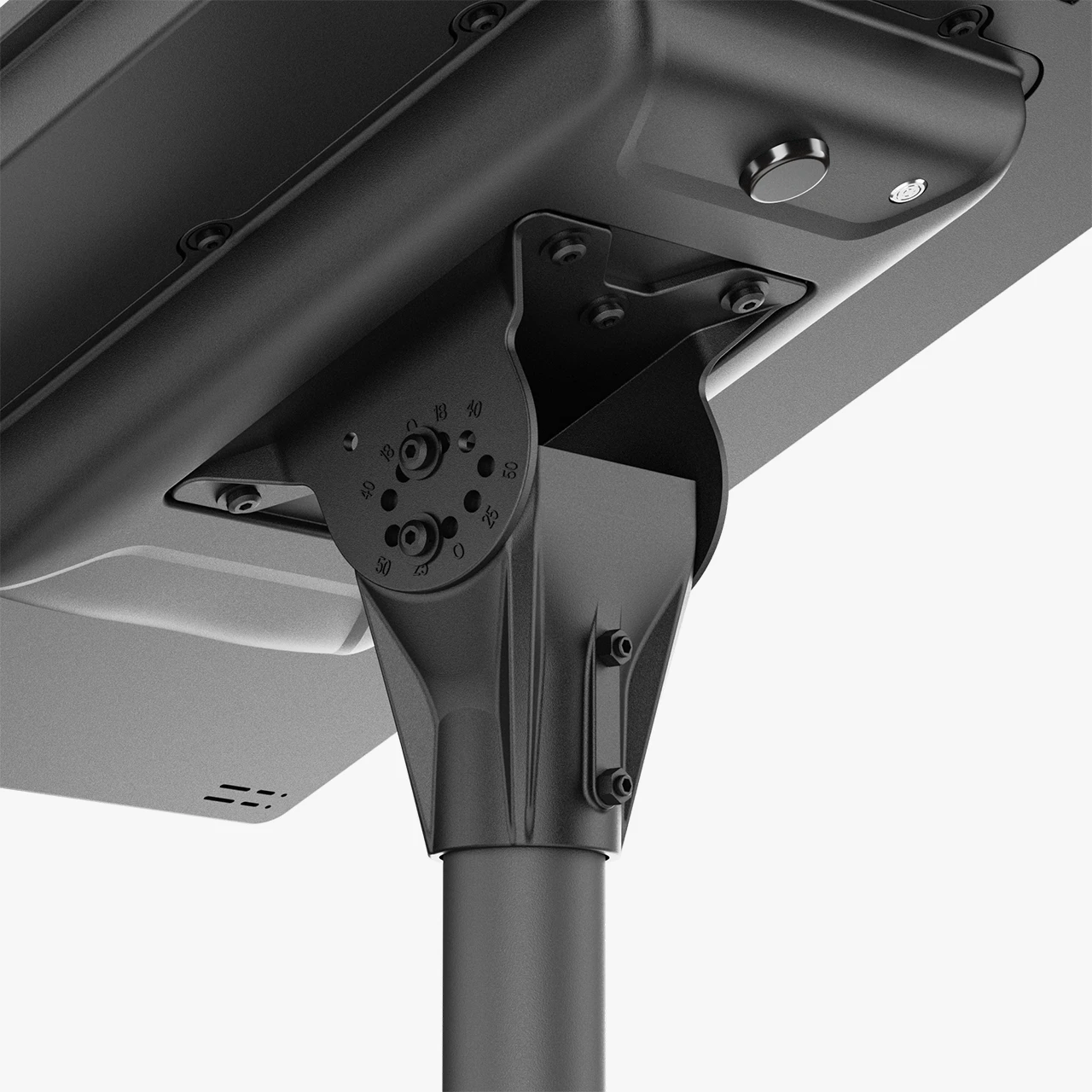

SS304 Knuckle Bracket

The knuckle bracket is made of stainless steel 304 for high speed wind resistant up to 160 km/h wind. 5mm thickness steel with anti-corrosion powder coating.

Extreme Weather Resistance

Sustain super durability during very extreme weather in typhoon. hurricane days with strong body made of alu die casting and sst material.

Main Specification

Item Number

AIO-80WS

AIO-100WS

LED Power

80W Max

100W Max

Luminous

13,600lm

17,000lm

LED Chip

SMD5050 36Pcs

SMD5050 72Pcs

LED Moduels

Single Module

Dual Modules

CCT Range

2200K~6500K

●

Light Optics

Type II/III/ etc

●

LiFePO4 Battery

615WH

768WH

Solar Panel

125W 36V

Product Size

960*700*330mm

●

Charge Controller

MPPT with sensor

●

Motion sensor

Microwave

●

Pole size

76mm

●

Installation height

5 ~ 8m

5 ~ 10M

Warranty

5 years

●

Main Specification

Item Number

LED Power

Luminous

LED Chip

LED Moduels

CCT Range

Light Optics

LiFePO4 Battery

Solar Panel

Product Size

Charge Controller

Motion sensor

Pole size

Installation height

Warranty

AIO-80WS

AIO-100WS

80W Max

100W Max

13,600lm

17,000lm

SMD5050 36Pcs

SMD5050 72Pcs

Single Module

Dual Modules

2200K~6500K

●

Type II/III/ etc

●

615WH

768WH

125W 36V

960*700*330mm

●

MPPT with sensor

●

Microwave

●

76mm

●

5 ~ 8m

5 ~ 10M

5 years

●

Download

Data Sheet

User Manual

Certificate

Datasheet of OMEGA 80W

4.59MB

*.rar

Download

User manual of OMEGA 80W

1.28MB

*.rar

Download

You May Ask

Can all-in-one solar light connect with 220V AC?

ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.

What's the type of sensor for all in one?

Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.

What is all-in-one solar street light?

All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.

What's the material of all-in-one solar street light?

Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light

What're the benefits of ZAIN battery box outside the case?

The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.

What is the default working mode of ZAIN solar street light

2h 100%+4h（30% + 70% sensor）+7h（20% +50% sensor） , it can be modified easily by remote control according to customers' requirement.

What‘s the adjustable range of LED board ?

The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.

What is the diameter of the pole for zain AIO solar light?

There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.

Can we customized the light fixture color ?

Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS

10.

Can i use a AC power adapter to charge batteries?

We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.

11.

What is the maximum battery capacity of ZAIN ?

The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.
