The ZAIN series is a high-quality, engineering-grade solar street light designed for a wide range of applications, from 5-meter to 12-meter pole heights. Crafted with a robust die-cast aluminum housing and premium-grade components, this product is built to last. The lithium battery uses high-temperature-resistant 32700 cells, with a lifespan of over 2000 cycles. Each night, the battery's depth of discharge is capped at 60%, ensuring long-term durability and performance.

At the heart of the ZAIN series are ultra-bright SMD5050 LEDs, delivering an impressive 170lm/W. To maximize light efficiency, we’ve developed the ULTRA SLIM series lens, a uniquely long and narrow design that boosts light utilization to over 93%, dramatically reducing waste and ensuring superior road illumination uniformity.

Equipped with a high-efficiency MPPT solar controller and an intelligent sensor, the ZAIN solar street light optimizes energy savings while providing reliable lighting performance. It is the ideal choice for parks, residential areas, pedestrian pathways, and even city main roads. If your project demands quality, the ZAIN solar street light is the ultimate solution, combining cutting-edge technology with unparalleled durability.

Key Componente & Advantages

MPPT Charge Controller

maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。

LiFePo4 Battery

Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.

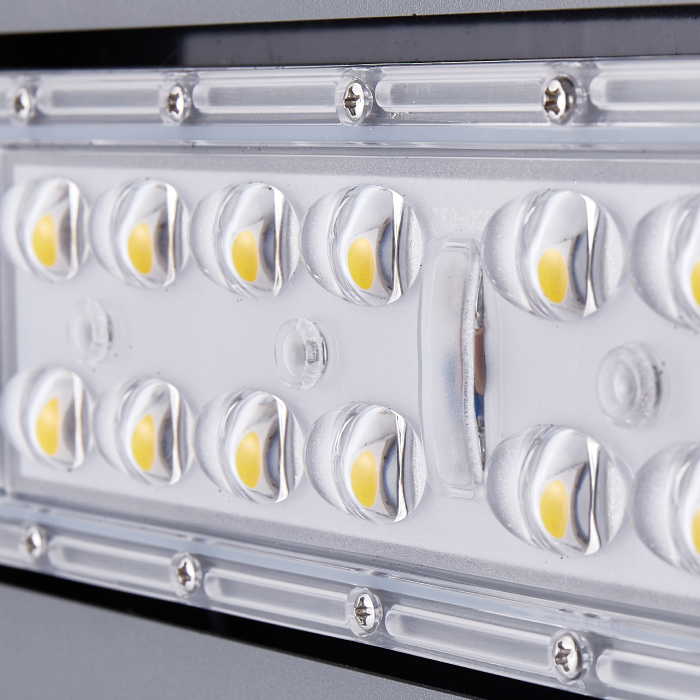

High Brightness Led

High brightness led enhances visibility and safety while providing energy-efficient

Programmable by Remote

The lighting program can be modified anytime by remote control according to customers' requirement.

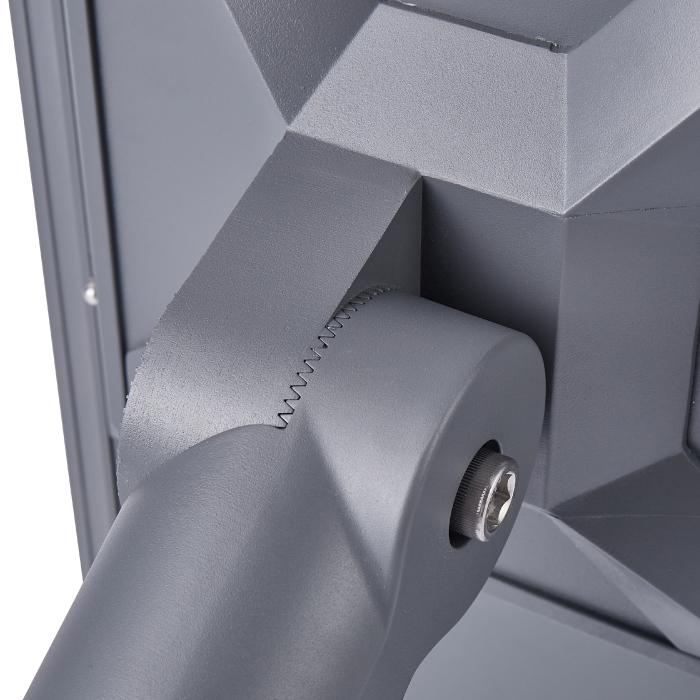

Robust Design

Robust design of light fixture provides superior durability, corrosion resistance, and heat dissipation.

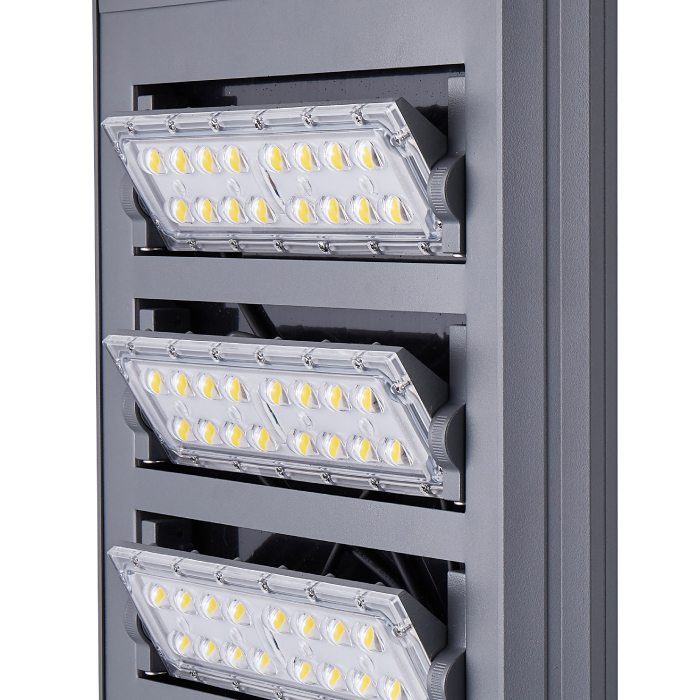

Adjustable LED Module

The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.

Main Specification

Item number

AIO-80WZ

AIO-100WZ

AIO-120WZ

AIO-140WZ

LED power

80W

100W

120W

140W

Luminous

13,600lm

17,000lm

20,400lm

23,800lm

CCT range

2200K~6500K

●

LED module

SMD5050 48pcs

SMD5050 64pcs

SMD5050 80pcs

LiFePO4 battery

12.8V 614WH

12.8V 768WH

25.6V 921WH

25.6V 1075WH

Solar panel

18V 103W

18V 125W

36V 135W

36V 158W

Product size

1300*420*350mm

1590*420*350mm

1360*530*380mm

1480*530*380mm

Charge controller

MPPT

●

Pole size

76mm

●

Installation height

6 ~ 10m

6 ~ 12m

8 ~ 12m

8 ~ 14m

Warranty

5 years

●

Main Specification

Item number

LED power

Luminous

CCT range

LED module

LiFePO4 battery

Solar panel

Product size

Charge controller

Pole size

Installation height

Warranty

AIO-80WZ

AIO-100WZ

AIO-120WZ

AIO-140WZ

80W

100W

120W

140W

13,600lm

17,000lm

20,400lm

23,800lm

2200K~6500K

●

SMD5050 48pcs

SMD5050 64pcs

SMD5050 80pcs

12.8V 614WH

12.8V 768WH

25.6V 921WH

25.6V 1075WH

18V 103W

18V 125W

36V 135W

36V 158W

1300*420*350mm

1590*420*350mm

1360*530*380mm

1480*530*380mm

MPPT

●

76mm

●

6 ~ 10m

6 ~ 12m

8 ~ 12m

8 ~ 14m

5 years

●

Download

Data Sheet

User Manual

Certificate

You May Ask

Can all-in-one solar light connect with 220V AC?

ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.

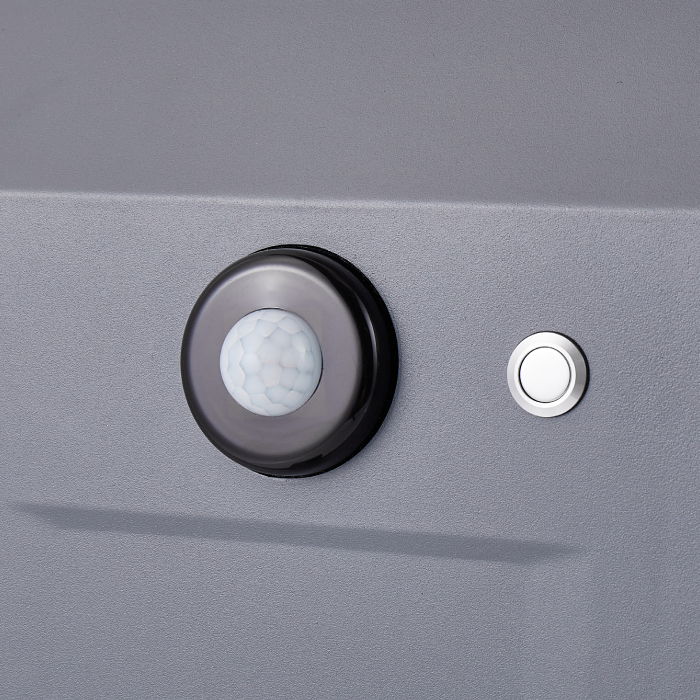

What's the type of sensor for all in one?

Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.

What is all-in-one solar street light?

All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.

What's the material of all-in-one solar street light?

Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light

What're the benefits of ZAIN battery box outside the case?

The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.

What is the default working mode of ZAIN solar street light

2h 100%+4h（30% + 70% sensor）+7h（20% +50% sensor） , it can be modified easily by remote control according to customers' requirement.

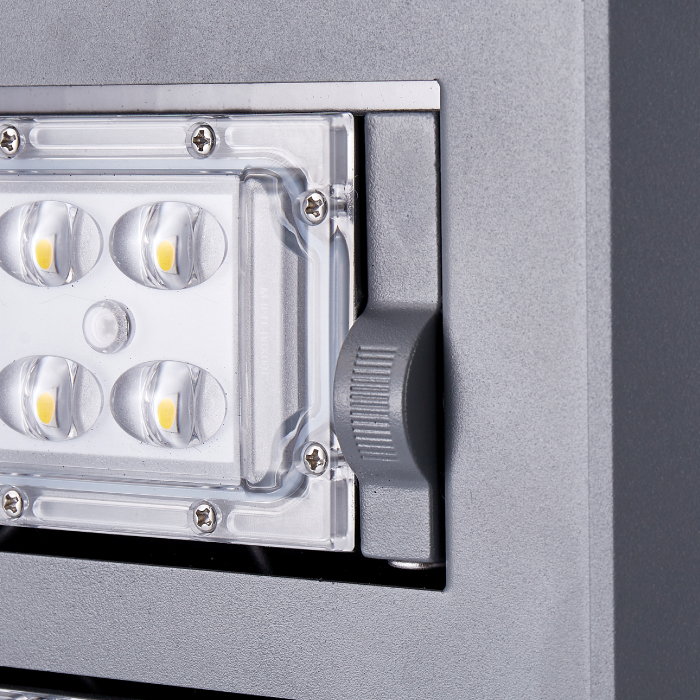

What‘s the adjustable range of LED board ?

The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.

What is the diameter of the pole for zain AIO solar light?

There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.

Can we customized the light fixture color ?

Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS

10.

Can i use a AC power adapter to charge batteries?

We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.

11.

What is the maximum battery capacity of ZAIN ?

The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.

New Arrivals

About

Products

Project Gallery

Download

Expertise

Contact

140W Intelligent Control Solar Luminaires

Adjustable LED Module | 170lm/W | CB Approved

140W Intelligent Control Solar Luminaires

Adjustable LED Module | 170lm/W | CB Approved

Key Componente & Advantages

MPPT Charge Controller

LiFePo4 Battery

High Brightness Led

Programmable by Remote

Robust Design

Adjustable LED Module

Main Specification

Main Specification

Download

Projects Cases

Projects Cases

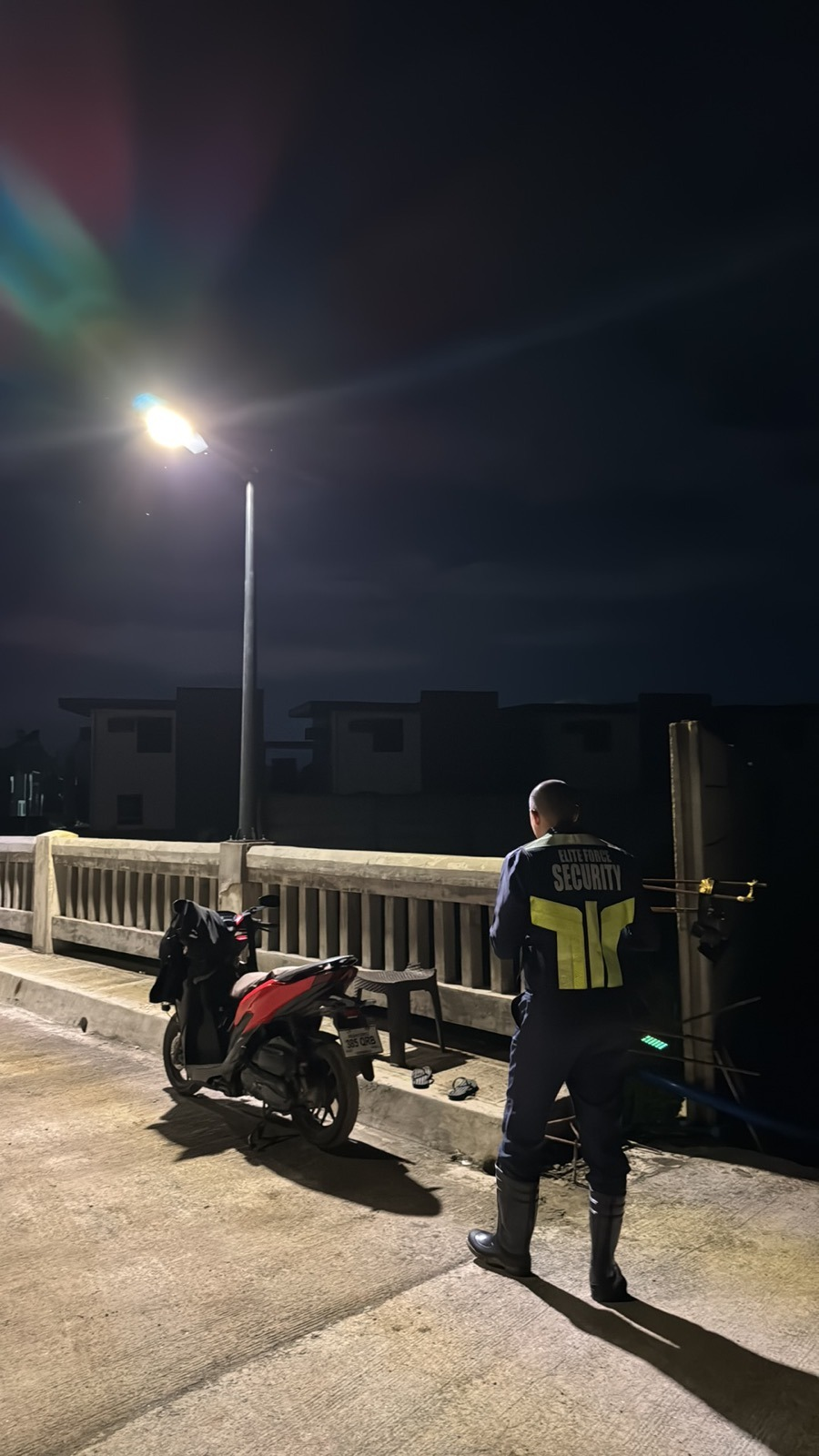

MILIO 50W AIO solar street light in Mexico
