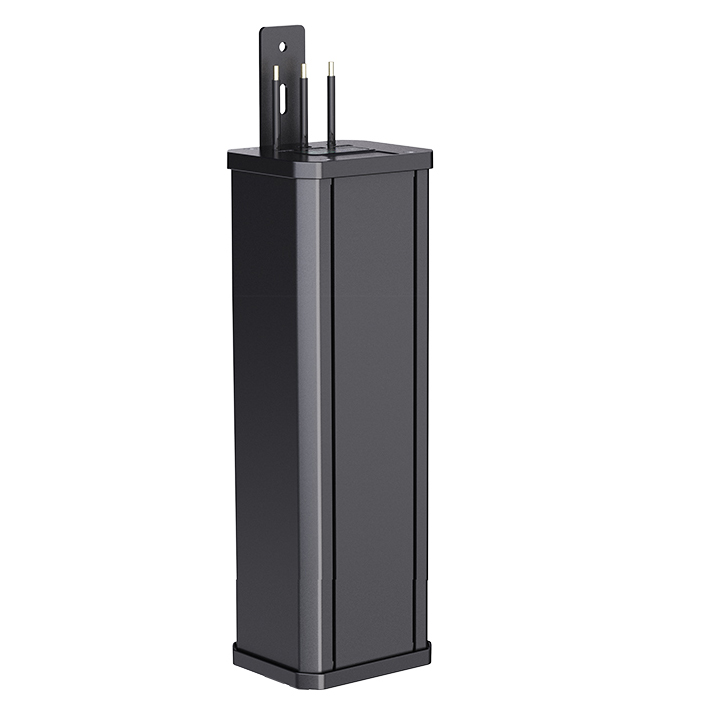

E Series Lithium Battery Cylinder

IP65 | Long Lifetime | Compact Design
Model
E Series
K Series
Battery Capacity
25.6V 60AH
25.6V 90AH
Battery Cell
32140/32700
●
Lifetime@D.OD 50%
6000 cycles
●
Warranty
5 Years
●
Send inquiry
More info
lithium battery cylinder
lithium battery box
lithium battery in pole
in pole mounted lithium battery
pole mounted lithium battery box
lithium battery cylinder
lithium battery box
lithium battery in pole
in pole mounted lithium battery
pole mounted lithium battery box

E Series Lithium Battery Cylinder

IP65 | Long Lifetime | Compact Design
Model
E Series
K Series
Battery Capacity
25.6V 60AH
25.6V 90AH
Battery Cell
32140/32700
●
Lifetime@D.OD 50%
6000 cycles
●
Warranty
5 Years
●
Send inquiry
More info

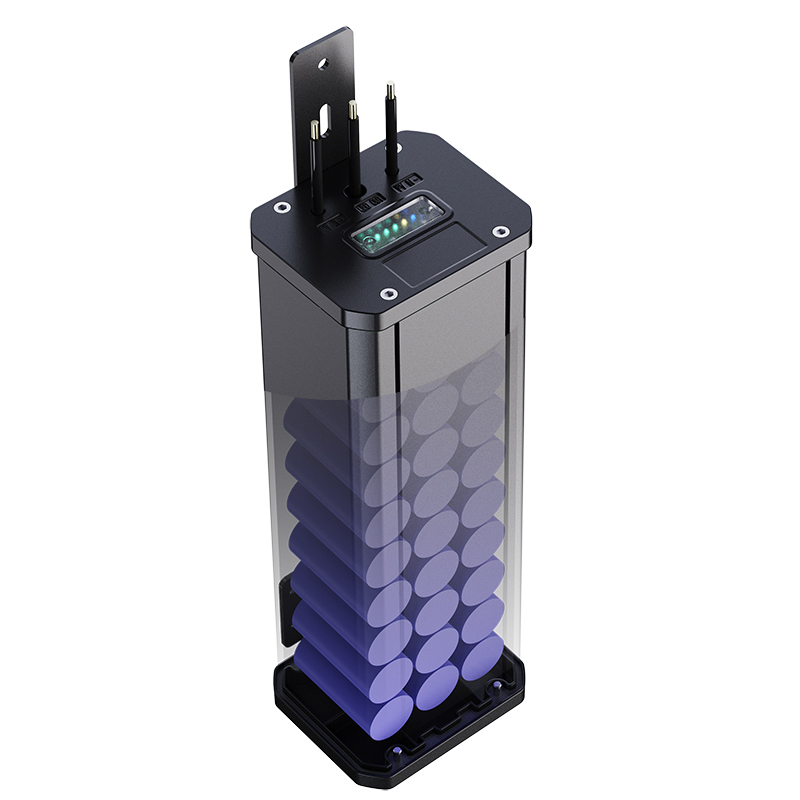

Introducing the EK Series Lithium Battery Pack – the ultimate power solution tailored for outdoor lighting and versatile applications. Designed to fit seamlessly within lamp poles, the EK Series redefines efficiency and durability, making it the perfect choice for solar streetlights, solar-powered surveillance systems, and solar advertising displays.

Crafted with a robust aluminum alloy casing and an IP67 waterproof rating, this battery pack is built to withstand the toughest environmental challenges. Its customizable capacity ensures it adapts to your unique energy needs, delivering unmatched performance. Whether powering outdoor systems or providing rapid indoor electricity supply, the EK Series guarantees reliability and flexibility. Elevate your projects with this state-of-the-art energy solution, engineered for excellence in every detail.

Key Componente & Advantages

High Charging Efficiency
A high-efficiency solar controller maximizes energy conversion, ensuring rapid and reliable battery charging.
Enhanced Safety

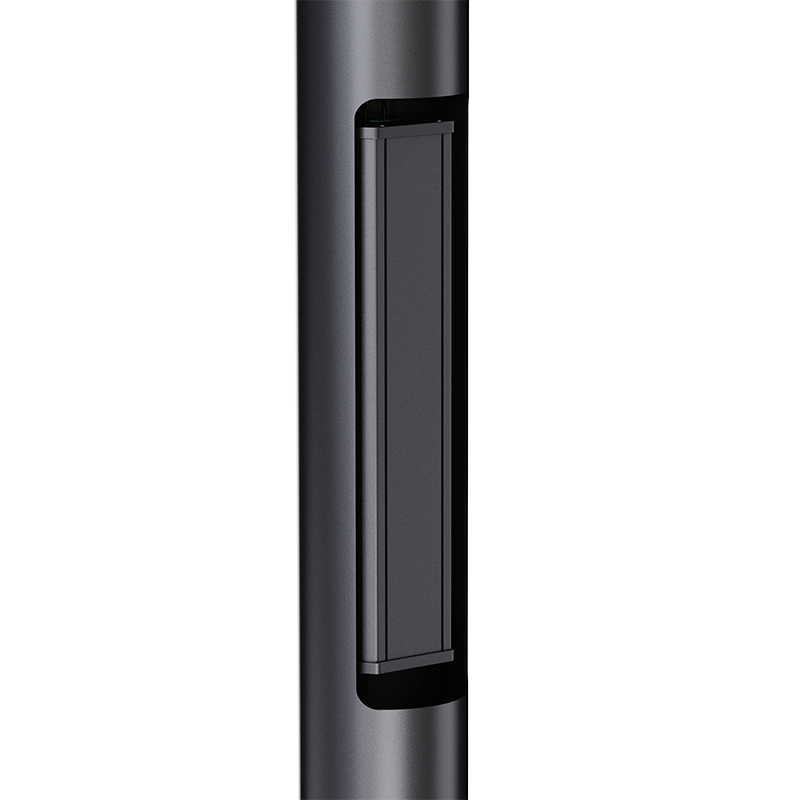

The design, integrated into the light pole, effectively protects the battery from external environmental impacts such as extreme weather, theft, and vandalism. This ensures the battery's safety and longevity
Simplified Installation & Maintenance:
The integrated battery design makes the system more unified, simplifying and speeding up the installation and maintenance processes, thus reducing labor and time costs.
Space Saving
Utilizing the internal space of the light pole for battery installation avoids the issue of traditional external battery boxes occupying ground space, keeping the installation area clean and neat.
Aesthetic Uniformity
Integrating the battery inside the light pole results in a cleaner, more stylish appearance for the entire solar street light system, aligning with the aesthetic standards of modern cities and high-end communities.
Efficient Heat Dissipation
The environment inside the pole offers excellent heat dissipation conditions, helping maintain the battery at an optimal working temperature extending battery life and enhancing the performance.

Main Specification

Model
E1236
E1260
E1290
E2560
Battery Cell
6000mA 3.2V 32700
●
●
●
Nominal Capacity
12.8V 36AH
12.8V 60AH
12.8V 90AH
25.6V 60AH
Battery Cell Qty
24 pieces
40 pieces
52 pieces
80 pieces
Array Mode
6P4S
10P4S
13P4S
10P9S
Dimension ( L*W*H)
320*125*108mm
510*125*108mm
710*125*108mm
920*125*108mm
Net Weight
4.10Kg
5.30Kg
8.20Kg
12.50Kg
Charge Mode
C.C + C.V
●
●
●
Charge Cut-off Vol
14.6±0.05V
●
●
●
Dischg Cut-off Vol
11±0.05V
●
●
●
Lifetime
4,000 cycles
●
●
●
Default D.O.D
60%
●
●
●
Storage Temp.
5℃～35℃
●
●
●
Operating Temp.
-10℃～45℃
●
●
●
Warranty
3 Years
●
●
●

Main Specification

Model
Battery Cell
Nominal Capacity
Battery Cell Qty
Array Mode
Dimension ( L*W*H)
Net Weight
Charge Mode
Charge Cut-off Vol
Dischg Cut-off Vol
Lifetime
Default D.O.D
Storage Temp.
Operating Temp.
Warranty
E1236
E1260
E1290
E2560
6000mA 3.2V 32700
●
●
●
12.8V 36AH
12.8V 60AH
12.8V 90AH
25.6V 60AH
24 pieces
40 pieces
52 pieces
80 pieces
6P4S
10P4S
13P4S
10P9S
320*125*108mm
510*125*108mm
710*125*108mm
920*125*108mm
4.10Kg
5.30Kg
8.20Kg
12.50Kg
C.C + C.V
●
●
●
14.6±0.05V
●
●
●
11±0.05V
●
●
●
4,000 cycles
●
●
●
60%
●
●
●
5℃～35℃
●
●
●
-10℃～45℃
●
●
●
3 Years
●
●
●

Download

Data Sheet
User Manual
Certificate

Projects Cases

All-in-two Solar Street Light in Ajman, UAE

This Solar Area Lighting project, installed in May 2020, is located in Ajman, UAE and features 47 high-powered solar LED street lights, each 10 meters high.

The project provides reliable, environmentally friendly lighting for parking areas. The installation not only improves visibility and safety, but also meets sustainable energy goals.




25-03-2025
More...
High performance solar street light in Colombia
Additionally, an advanced wireless intelligent control system is available which makes the solar street lights could be monitored and settable online freely.
14-08-2024
More...
Powerful solar street light

In September 2022, a total of 72 All-In-Two solar LED street lights were installed in Sri Lanka, enhancing the region's lighting infrastructure with a sustainable and efficient solution. Each 40w light is mounted on an 8-meter-high pole and is powered by a 100W 18V solar panel, ensuring bright and reliable lighting.
The battery and MPPT solar charge controller are built into the light fixture, simplifying installation and minimizing maintenance. The lights and solar panels are connected via MC4 connectors, providing a secure and stable connection. The project significantly improves visibility and safety while promoting the adoption of renewable energy.

14-08-2024
More...
Street lighting with solar energy in Australia
All in Two solar street light series are dedicated to providing the real and continuous high brightness output for high-end project.
14-08-2024
More...

Projects Cases

All-in-two Solar Street Light in Ajman, UAE

This Solar Area Lighting project, installed in May 2020, is located in Ajman, UAE and features 47 high-powered solar LED street lights, each 10 meters high.

The project provides reliable, environmentally friendly lighting for parking areas. The installation not only improves visibility and safety, but also meets sustainable energy goals.




25-03-2025
View More
High performance solar street light in Colombia
Additionally, an advanced wireless intelligent control system is available which makes the solar street lights could be monitored and settable online freely.
14-08-2024
View More
Powerful solar street light

In September 2022, a total of 72 All-In-Two solar LED street lights were installed in Sri Lanka, enhancing the region's lighting infrastructure with a sustainable and efficient solution. Each 40w light is mounted on an 8-meter-high pole and is powered by a 100W 18V solar panel, ensuring bright and reliable lighting.
The battery and MPPT solar charge controller are built into the light fixture, simplifying installation and minimizing maintenance. The lights and solar panels are connected via MC4 connectors, providing a secure and stable connection. The project significantly improves visibility and safety while promoting the adoption of renewable energy.

14-08-2024
View More
Street lighting with solar energy in Australia
All in Two solar street light series are dedicated to providing the real and continuous high brightness output for high-end project.
14-08-2024
View More

You May Ask

1.
Why install a solar street lamp rather than a traditional street lamp?

Solar streetlights have several advantages over conventional streetlights connected to the Electricity grid: Easy to install: Less than 10 minutes per installation Sustainable solution: No lead 100% recyclable No trenching,no cabling Minimized installation costs No electricity bill: No operating costs


solution: No lead 100% recyclable No trenching,no cabling Minimized installation costs No electricity bill: No operating costs

2.
Is it possible to connect 2 lights to one solar panel?
Yes, but it need to consider the current, voltage and distance between the two lights. Pls confirm with our team for more information.
3.
Can the Apollo solar batten light wire be extended for longer?
Yes, it uses 2.5mm solar cable, which allows the distance from solar panel to light could be up to 40 meters without voltage dropping.
4.
What's the default mode of Apollo solar batten light?
12 hours 100%+30% or 3h 100% (80% when the sensor is triggered)+4h 80% (50% when the sensor is triggered)+5h 30%.  it can be programmed by remote if necessary.
5.
What kind of sensor is built in solar batten light?
Microwave. More sensitive than PIR. The induction distance is more than 8 meters.
6.
Can I use my solar panel in stock for Apollo batten light?
Yes, the light adopts universal MC4 connectors, you  can use any suitable power and voltage of solar panel, please confirm with our team before your operation.
7.
I have a project that require the solar batten light works both under day and night time, can you do that?
It can be okay, Auroras can customize the product for you.
8.
What is the MOQ of Solmate batten light?
100pcs per item
9.
Can your make my color box for solmate batten light?
Yes,  MOQ is 500pcs per item and color box is free of charge.
