80W High Power Solar AIO Street Light

Adjustable LED Module | 170lm/W | CB Approved
LED Power
60W
80W
LED Luminous
10,200lm
13,600lm
Solar Panel
18V 82W
18V 103W
LiFePO4 Battery
12.8V 460WH
12.8V 614WH
Warranty
5 years
sensor solar led street light
smart solar led street light
integrated solar security lighting
titable solar highway light
rotatable solar street light
zigbee solar led street light
rotatable integrated solar light
smart solar highway light
sensor solar led street light
smart solar led street light
integrated solar security lighting
titable solar highway light
rotatable solar street light
zigbee solar led street light
rotatable integrated solar light
smart solar highway light

80W High Power Solar AIO Street Light

Adjustable LED Module | 170lm/W | CB Approved
LED Power
60W
80W
LED Luminous
10,200lm
13,600lm
Solar Panel
18V 82W
18V 103W
LiFePO4 Battery
12.8V 460WH
12.8V 614WH
Warranty
5 years
Send inquiry
More info

The ZAIN series is a high-quality, engineering-grade solar street light designed for a wide range of applications, from 5-meter to 12-meter pole heights. Crafted with a robust die-cast aluminum housing and premium-grade components, this product is built to last. The lithium battery uses high-temperature-resistant 32700 cells, with a lifespan of over 2000 cycles. Each night, the battery's depth of discharge is capped at 60%, ensuring long-term durability and performance.



At the heart of the ZAIN series are ultra-bright SMD5050 LEDs, delivering an impressive 170lm/W. To maximize light efficiency, we’ve developed the ULTRA SLIM series lens, a uniquely long and narrow design that boosts light utilization to over 93%, dramatically reducing waste and ensuring superior road illumination uniformity.


Equipped with a high-efficiency MPPT solar controller and an intelligent sensor, the ZAIN solar street light optimizes energy savings while providing reliable lighting performance. It is the ideal choice for parks, residential areas, pedestrian pathways, and even city main roads. If your project demands quality, the ZAIN solar street light is the ultimate solution, combining cutting-edge technology with unparalleled durability.


Key Componente & Advantages

MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。
LiFePo4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.

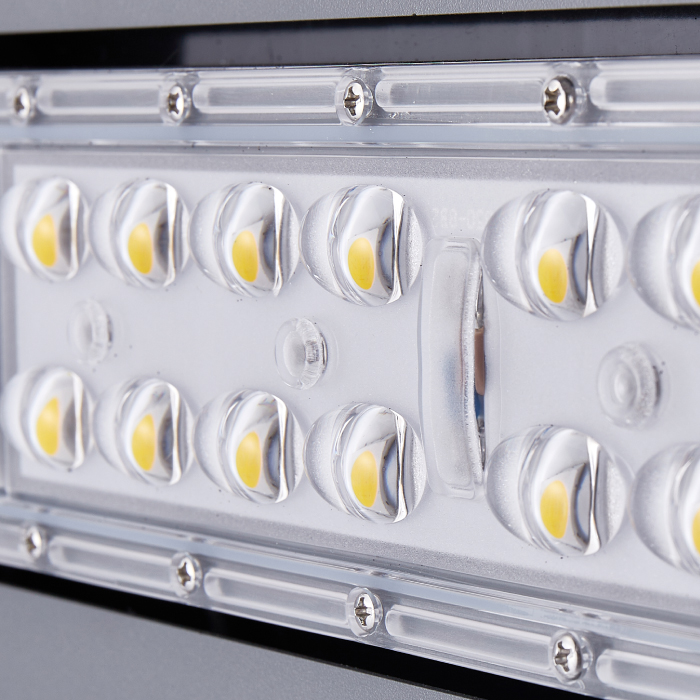

High Brightness Led
High brightness led enhances visibility and safety while providing energy-efficient
Programmable by Remote
The lighting program can be modified anytime by remote control according to customers' requirement.

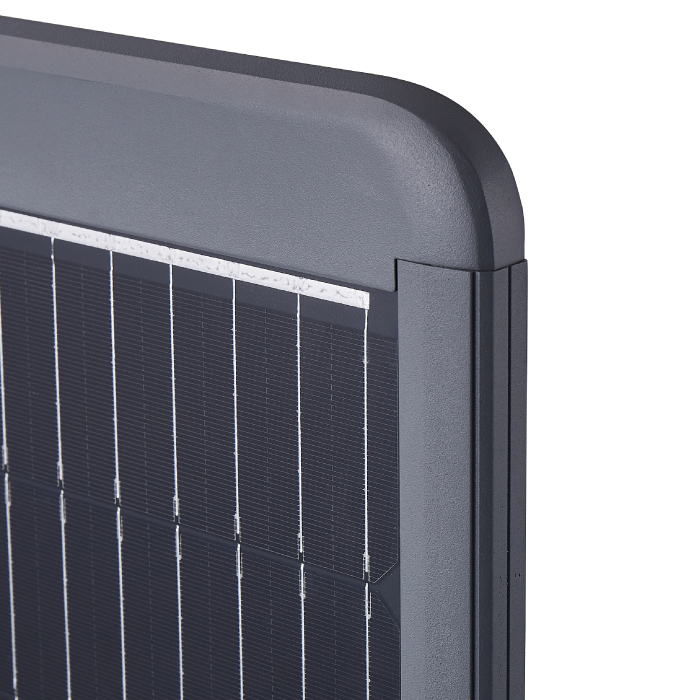

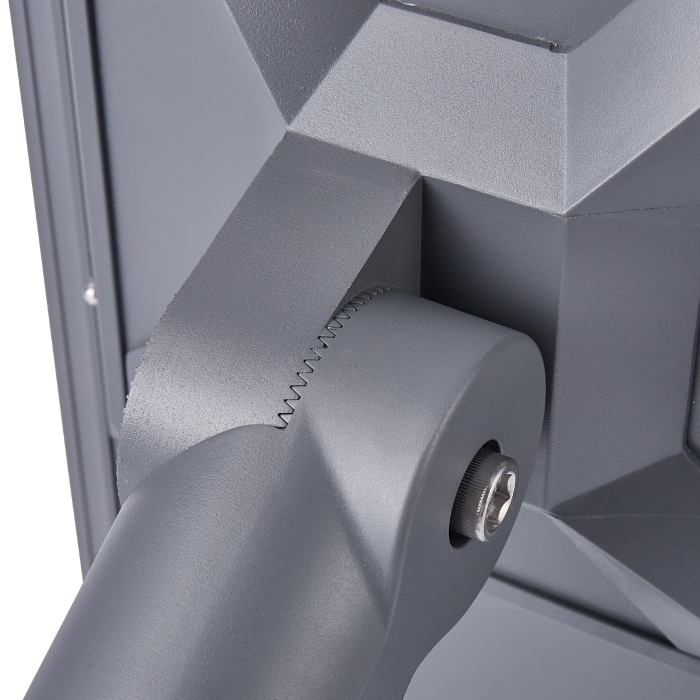

Robust Design
Robust design of light fixture provides superior durability, corrosion resistance, and heat dissipation.

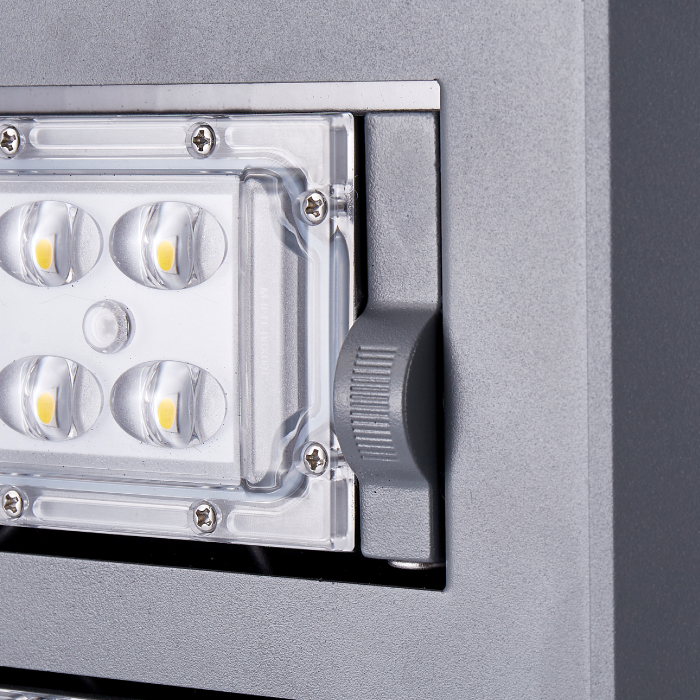

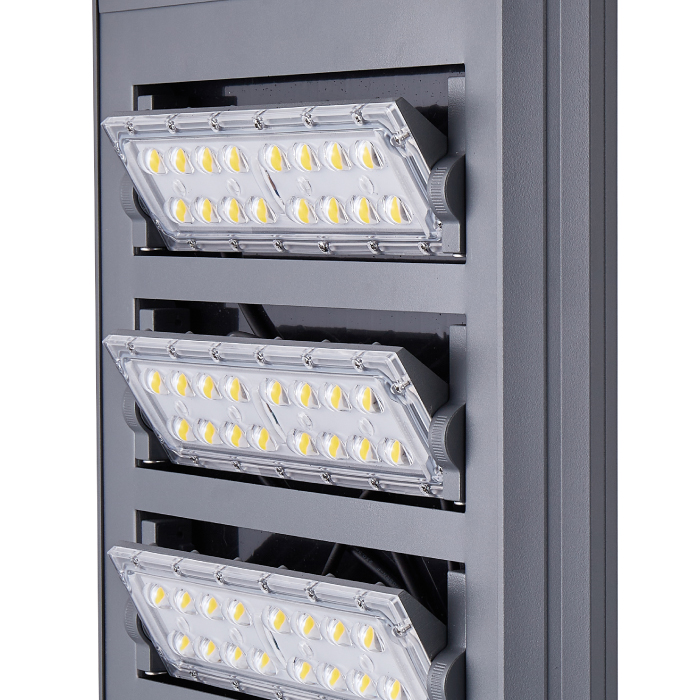

Adjustable LED Module
The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.

Main Specification

Item number
AIO-60WZ
AIO-80WZ
AIO-100WZ
AIO-120WZ
LED power
60W
80W
100W
120W
Luminous
10,200lm
13,600lm
17,000lm
20,400lm
CCT range
2200K~6500K
LED module
SMD5050 32pcs
SMD5050 48pcs
SMD5050 64pcs
SMD5050 64pcs
LiFePO4 battery
12.8V 460WH
12.8V 614WH
12.8V 768WH
25.6V 921WH

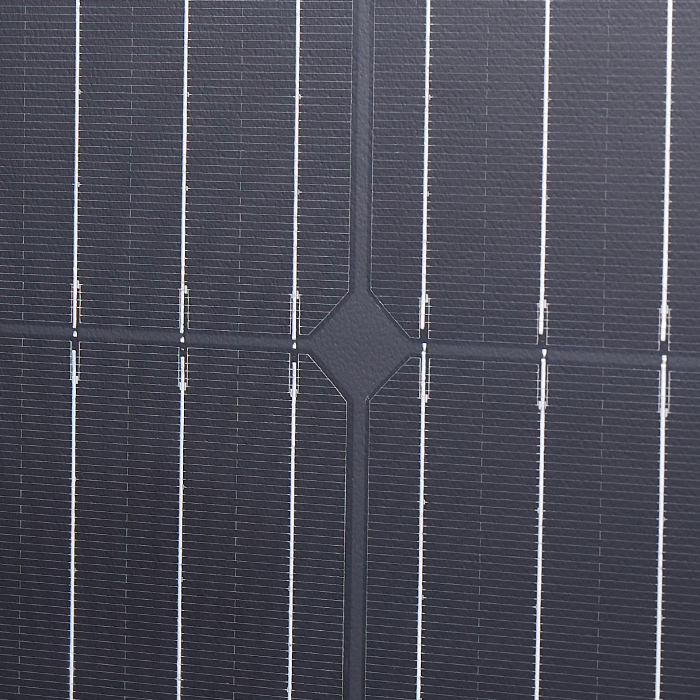

Solar panel
18V 82W
18V 103W
18V 125W
36V 135W
Product size
1100*420*350mm
1300*420*350mm
1590*420*350mm
1360*530*380mm
Charge controller
MPPT
Pole size
76mm
Installation height
5 ~ 8m
6 ~ 10m
6 ~ 12m
8 ~ 12m
Warranty
5 years

Main Specification

Item number
LED power
Luminous
CCT range
LED module
LiFePO4 battery
Solar panel
Product size
Charge controller
Pole size
Installation height
Warranty
AIO-60WZ
AIO-80WZ
AIO-100WZ
AIO-120WZ
60W
80W
100W
120W
10,200lm
13,600lm
17,000lm
20,400lm
2200K~6500K
SMD5050 32pcs
SMD5050 48pcs
SMD5050 64pcs
SMD5050 64pcs
12.8V 460WH
12.8V 614WH
12.8V 768WH
25.6V 921WH
18V 82W
18V 103W
18V 125W
36V 135W
1100*420*350mm
1300*420*350mm
1590*420*350mm
1360*530*380mm
MPPT
76mm
5 ~ 8m
6 ~ 10m
6 ~ 12m
8 ~ 12m
5 years

Download

Data Sheet
User Manual
Certificate

Projects Cases

Projects Cases

You May Ask

1.
Can all-in-one solar light connect with 220V AC?
ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.
2.

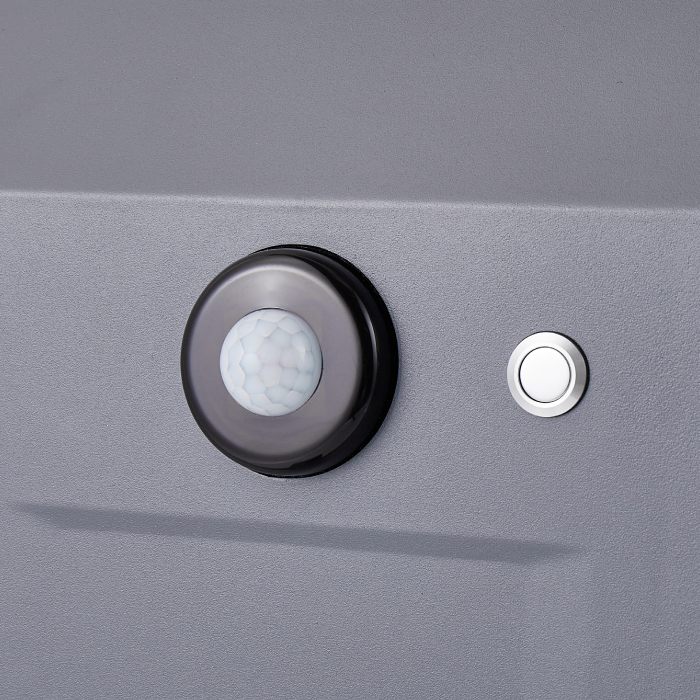

What's the type of sensor for all in one?
Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.
3.
What is all-in-one solar street light?
All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.
4.
What's the material of all-in-one solar street light?
Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light
5.
What're the benefits of ZAIN battery box outside the case?
The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.
6.
What is the default working mode of ZAIN solar street light
2h 100%+4h(30%  +  70% sensor)+7h(20% +50% sensor) , it can be modified easily by remote control according to customers' requirement.
7.
What‘s the adjustable range of LED board ?
The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.
8.
What is the diameter of the pole for zain AIO solar light?
There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.
9.
Can we customized the light fixture color ?
Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS
10.
Can i use a  AC power adapter to charge batteries?
We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.
11.
What is the maximum battery capacity of  ZAIN ?
The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.
