all in one solar street light
all in one solar street light

MILIO丨30W Solar Street Light

Robust Design | 170lm/W | Microwave Sensor
Model NO.
MILIO AIO-30WM
MILIO AIO-50WM
LED Power
30W丨5,100lm
50W丨8,500lm
LiFePO4 Battery
12.8V 12AH
12.8V 30AH
Solar Panel
40W 18V Mono
60W 18V Mono
Pole Height
3~6 meters
5~8 meters
all in one solar street light
all in one solar street light

MILIO丨30W Solar Street Light

Robust Design | 170lm/W | Microwave Sensor
Model NO.
MILIO AIO-30WM
MILIO AIO-50WM
LED Power
30W丨5,100lm
50W丨8,500lm
LiFePO4 Battery
12.8V 12AH
12.8V 30AH
Solar Panel
40W 18V Mono
60W 18V Mono
Pole Height
3~6 meters
5~8 meters
Send inquiry
More info

The MILIO series is a premium, compact solar street light specifically engineered for use with lower light poles ranging from 3 to 6 meters in height. Designed with durability and performance in mind, it features a robust die-cast aluminum housing for superior heat dissipation and weather resistance. Powered by an advanced MPPT solar controller, MILIO ensures optimal energy conversion and battery charging efficiency.


The integrated A-grade LiFePO4 battery guarantees long-lasting, stable performance with extended lifespan. Ideal for urban pathways, residential streets, and parks, garden lighting etc,  MILIO combines cutting-edge technology with a sleek, compact design for reliable outdoor lighting.

Key Componente & Advantages

MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。
High Brightness Led
High brightness led enhances visibility and safety while providing energy-efficient
Programmable by Remote
The lighting program can be modified anytime by remote control according to customers' requirement.
IP65 Waterproof
IP65 rating provides superior protection against dust and water, ensuring reliable performance in various outdoor conditions.
High Efficiency LED
High-brightness LED chips provide superior illumination, enhancing visibility and energy efficiency.
Long LifeTime Battery
Quality lithium battery Long-lasting reduce maintenance costs and increase system reliability.

Main Specification

Model NO.
MILIO AIO-30WM
MILIO AIO-50WM
LED Power
30W max
50W max
Luminous Flux
5,100lm
8,500lm
CCT
3000K~6000K
Beam Angle
Type II/III
LiFePO4 Battery
12.8V 12AH
12.8V 30AH
Battery Lifetime
2000 cycles
Solar Panel
40W 18V Mono
60W 18V Mono
Solar Controller
MPPT
Motion Sensor
PIR / Microwave
Remote Control
Yes
Dimension
740*350*85mm
900*380*88mm
Operating Temp.
-20℃ ~+60℃
IP Rating
IP66
Pole Diameter
60mm
Pole Height
3~6 meters
5~8 meters
Warranty
3 Years

Main Specification

Model NO.
LED Power
Luminous Flux
CCT
Beam Angle
LiFePO4 Battery
Battery Lifetime
Solar Panel
Solar Controller
Motion Sensor
Remote Control
Dimension
Operating Temp.
IP Rating
Pole Diameter
Pole Height
Warranty
MILIO AIO-30WM
MILIO AIO-50WM
30W max
50W max
5,100lm
8,500lm
3000K~6000K
Type II/III
12.8V 12AH
12.8V 30AH
2000 cycles
40W 18V Mono
60W 18V Mono
MPPT
PIR / Microwave
Yes
740*350*85mm
900*380*88mm
-20℃ ~+60℃
IP66
60mm
3~6 meters
5~8 meters
3 Years

Download

Data Sheet
User Manual
Certificate

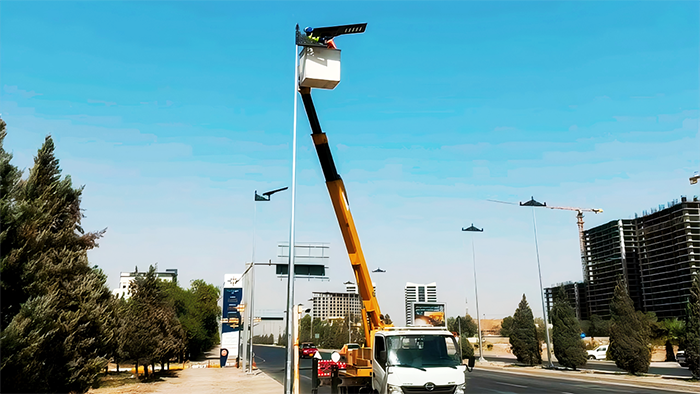

Projects Cases

Projects Cases

You May Ask

1.
Can all-in-one solar light connect with 220V AC?
ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.
2.
What's the type of sensor for all in one?
Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.
3.
What is all-in-one solar street light?
All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.
4.
What's the material of all-in-one solar street light?
Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light
5.
What're the benefits of ZAIN battery box outside the case?
The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.
6.
What is the default working mode of ZAIN solar street light
2h 100%+4h(30%  +  70% sensor)+7h(20% +50% sensor) , it can be modified easily by remote control according to customers' requirement.
7.
What‘s the adjustable range of LED board ?
The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.
8.
What is the diameter of the pole for zain AIO solar light?
There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.
9.
Can we customized the light fixture color ?
Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS
10.
Can i use a  AC power adapter to charge batteries?
We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.
11.
What is the maximum battery capacity of  ZAIN ?
The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.
